PMSM Motors for Flotation Line Upgrades

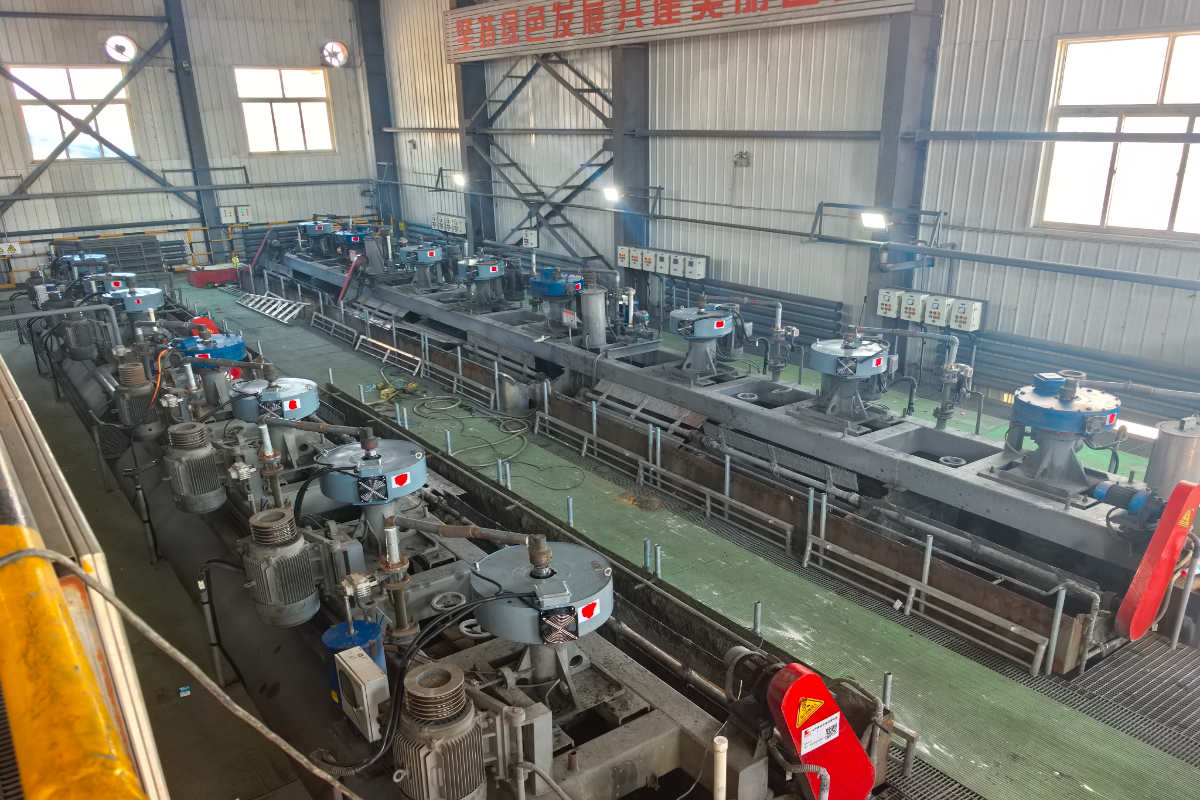

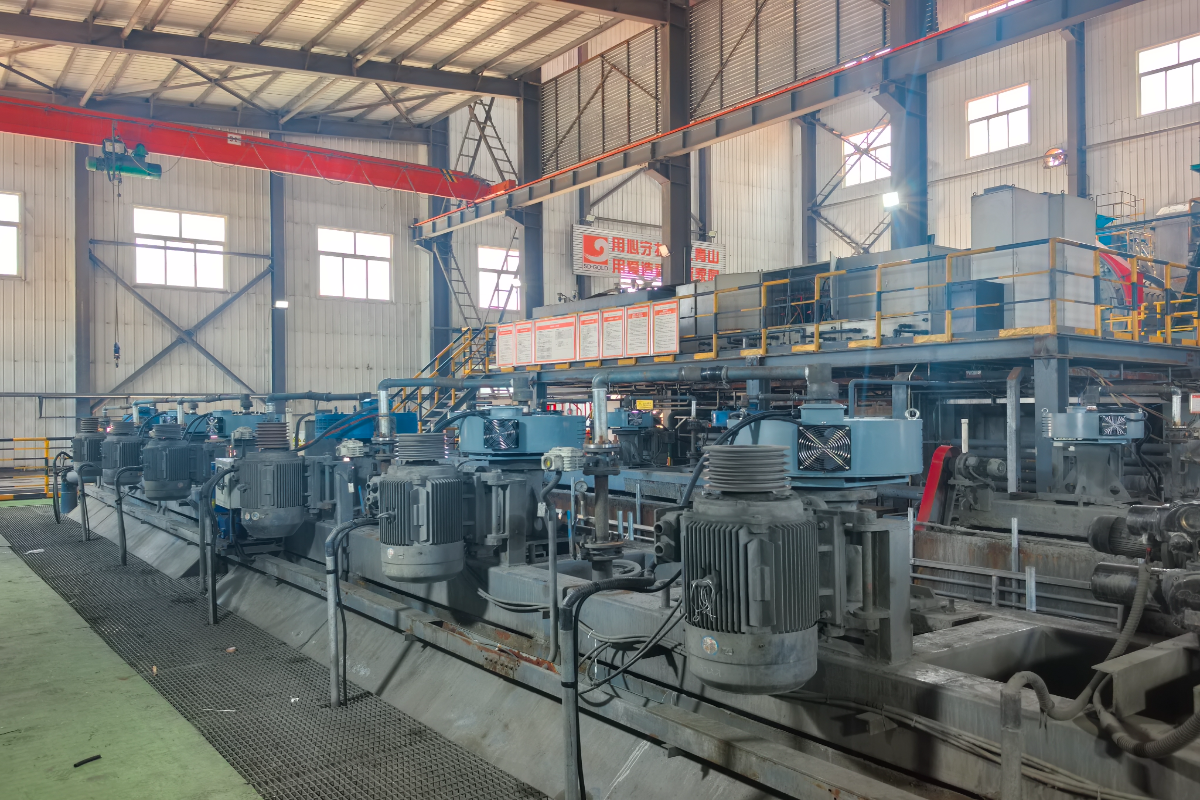

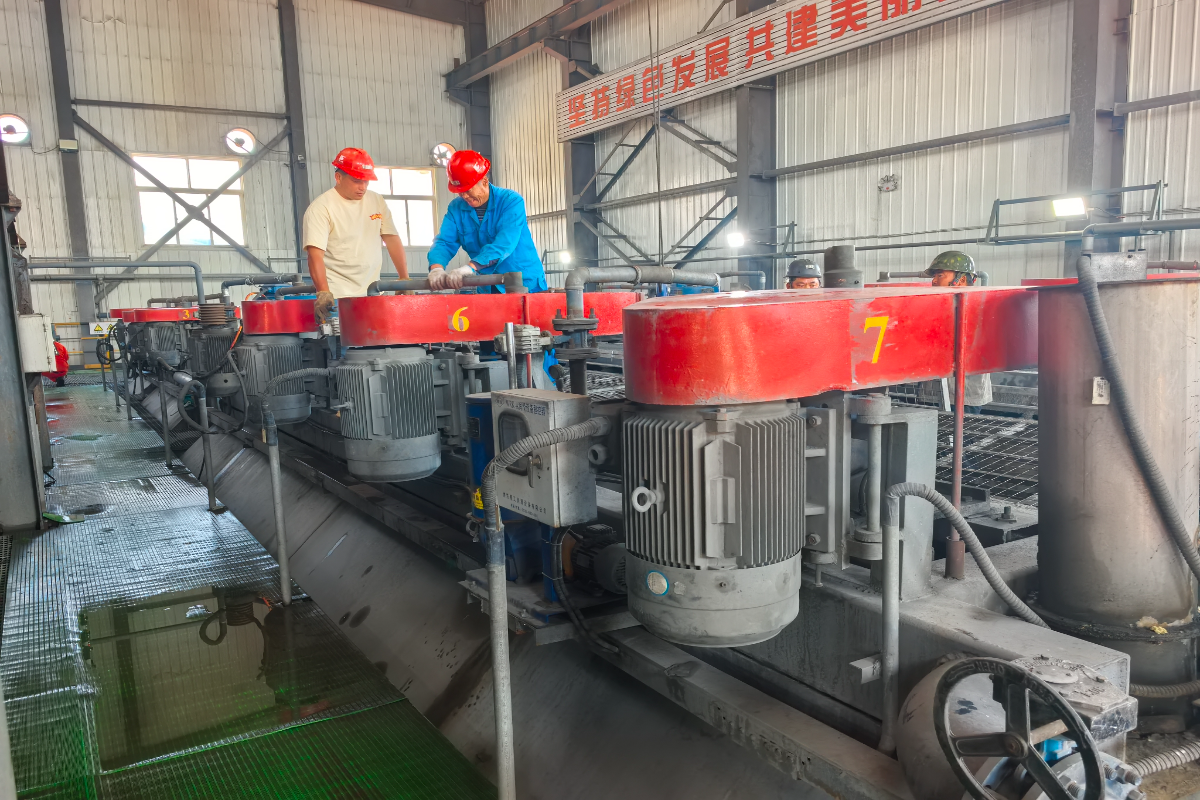

Shandong Gold Group has installed ENNENG TYT series permanent magnet synchronous motors across its flotation line, ball mill, and bulk material handling drives. This installation record provides documented performance data for engineers evaluating PMSM motors for flotation cells and for those planning a continuous-duty mineral processing motor selection. The following sections summarize the specifications on record and outline the technical areas relevant to a flotation line motor upgrade or a broader retrofit program.

Why Flotation Lines Demand Continuous-Duty Motors

Flotation equipment runs without extended idle periods, which means drive motors cannot rely on passive cooling between cycles. A motor selected for flotation duty must sustain its rated output continuously while remaining within the temperature limits defined by its insulation class. The installation environment typically includes dust, elevated humidity, and water exposure, all of which require an appropriate ingress protection rating. For engineers planning a flotation line motor upgrade, matching the motor's ingress protection and insulation class to the actual installation conditions is a prerequisite for reliable long-term operation. These environmental factors also apply when specifying a mining motor retrofit in an existing facility, where the physical conditions of the drive location may already be well characterized.

Frame Compatibility at the Shandong Gold Facility

The ENNENG TYT series permanent magnet synchronous motor shares the same mounting dimensions as a three-phase asynchronous motor of the same frame number. At the Shandong Gold Group facility, this dimensional equivalence meant that existing pulleys and couplings could remain in service without modification. For engineers assessing a flotation line motor upgrade, frame compatibility with the incumbent motor determines the mechanical scope of the changeover. Where mounting dimensions match, the retrofit is limited to the motor itself rather than the surrounding drive arrangement, reducing both the mechanical work required and the time needed to commission the new unit. For a mining motor retrofit in an existing installation, this distinction significantly affects project scope and cost.

IP55 Protection, Class F Insulation, and External Cooling

The TYT series installed at the Shandong Gold Group facility carries an IP55 protection rating and Class F insulation. An independent external cooling fan is included as a separate component of the motor's thermal management system. IP55 provides resistance to dust ingress and water jets from any direction, making it suitable for the environmental conditions found in a flotation building. Class F insulation defines the maximum allowable winding temperature under continuous load. The independent external cooling fan maintains airflow regardless of shaft speed, which is relevant for applications where motor speed varies during operation. These three specifications — IP55, Class F insulation, and an independent external fan — are the protection and thermal management parameters on record for the TYT series at this installation.

Efficiency and Temperature Rise Under Full Load

Across the power range relevant to the Shandong Gold Group installation, the TYT series achieves rated efficiency in the mid-90% range. Under full-load conditions, the motor exhibits a temperature rise below 80 K. For engineers comparing candidates for continuous-duty flotation service, rated efficiency and full-load temperature rise are the primary electrical and thermal evaluation parameters. Rated efficiency determines the electrical input required to sustain a given mechanical output under load. A full-load temperature rise below 80 K describes the thermal margin between actual winding temperature and the upper limit defined by Class F insulation during sustained heavy-load operation. These figures are direct inputs to any assessment of PMSM motors for flotation cells operating on a continuous duty cycle.

Additional Applications at the Same Facility

At the Shandong Gold Group facility, the TYT series is deployed in ball mill and bulk material handling applications alongside the flotation line installation. Ball mill drives and bulk handling conveyors involve different load profiles from flotation cell drives. The presence of the TYT series across all three application areas at this facility is documented in the project record. For engineers evaluating a mineral processing motor selection across multiple drive types within one operation, this deployment pattern indicates that the TYT series covers more than one application category in continuous mineral processing service.

Assessment Checklist for a Flotation Line Motor Retrofit

The following items identify the main technical areas to address when selecting a replacement motor for continuous-duty flotation line service. These are general assessment points and do not describe the specific process followed at the Shandong Gold Group facility.

Does the candidate motor share mounting dimensions with the existing motor at the required frame size? If it does, existing pulleys, couplings, and mounting bases may be retained, reducing the mechanical scope of the mineral processing motor changeover.

What ingress protection rating is appropriate for the installation zone? The answer depends on dust concentration, moisture levels, and water exposure at the specific drive location within the flotation building.

What insulation class is required, and is it consistent with ambient temperature and the continuous-duty cycle at the installation point?

Does the motor include an independent external cooling fan? This determines whether adequate thermal management is maintained when the motor operates across varying speed or load conditions.

What rated efficiency and full-load temperature rise does the motor achieve at the required power level? These figures support comparison between candidates and evaluation of thermal headroom under the expected duty cycle.

Confirming each of these points before procurement reduces the likelihood of additional mechanical work or commissioning delays on site.

Contacting ENNENG for TYT Series Specifications

The ENNENG TYT series is the motor series deployed at the Shandong Gold Group mineral processing facility across flotation line, ball mill, and bulk material handling drives. Engineers evaluating PMSM motors for flotation cells or planning a mining motor retrofit can contact ENNENG with their application requirements — including duty profile, required frame size, installation environment, and protection rating — to assess whether the TYT series is appropriate for their specific installation.
