What are the most frequent application scenarios for Permanent Magnet Motor PMSM in modern heavy‑industry transformation

Walk through a steel mill, an underground gold mine, or a tire compounding plant during an energy audit, and the biggest power hogs are hiding in plain sight. Centrifugal slurry pumps running against throttled discharge valves, kiln exhaust fans choked by inlet dampers, screw compressors cycling between load and unload, and low-speed mixers turning through leaking multi-stage gearboxes eat up shift budgets fast. Standard induction motors struggle in these spots because rotor slip, induced rotor copper heat, and steep efficiency drop-offs below 50% load turn partial-load hours into electrical waste.

Plant engineers upgrading heavy lines at Sinopec, Shandong Gold Mine, and Linglong Tire tackle those bottlenecks by pairing Variable Frequency Drives (VFDs) with a Permanent Magnet Motor PMSM. ENNENG designs and builds these permanent magnet rotating machines across a unified 5kW-5MW power range and 110V-690V voltage range, alongside 1kW-10kW vertical axis wind turbine generators (3kW, 5kW, and 10kW units). Because high-grade NdFeB (Neodymium Iron Boron) magnets embedded in the rotor supply the magnetic field without grid excitation current, rotor copper loss drops to zero and the drive locks synchronously to stator frequency.

Variable-Torque Workhorses: Compressors, Pumps, and Draft Fans

The fastest payback in heavy-industry retrofits usually shows up on fluid and air-moving equipment where demand swings from hour to hour.

1. Rotary Screw Air Compressors and Plant Air Networks

Compressed air accounts for 15% to 30% of a factory's utility bill, yet shop air networks spend half the day below peak demand. Traditional induction motors running slide-valve or load/unload compressors draw heavy reactive current even when air consumption dips. Pairing a customized VFD with an ENNENG High Efficiency PMSM Motor lets the compressor track plant air pressure dynamically. Because zero rotor copper loss keeps motor temperature rise 20K lower than induction units—staying under 60K on continuous shifts—the motor handles frequent speed changes without baking stator insulation. In verified retrofits, variable-frequency Permanent Magnet Motor PMSM compressor packages cut electricity consumption by up to 50% while eliminating across-the-line starting surges.

2. Slurry Pumps, Cooling Loops, and Kiln Induced-Draft Fans

On centrifugal pumps and industrial blowers, affinity laws work in the operator's favor: trimming shaft speed by 20% cuts power demand nearly in half, and 50% airflow needs roughly one-eighth of full-load power. The catch is that standard induction motors lose efficiency and power factor rapidly once VFD speed drops into the 30% to 60% load zone. An ENNENG PM Synchronous Motor and Permanent Magnet Motor PMSM hold a flat IE5 efficiency plateau (under IEC 60034-30-1 and IEC TS 60034-30-2) from 25% to 120% of rated load, running 2% to 5% more efficient at rated point and even further ahead at part load. Holding a 0.95 to 1.0 power factor (vs. 0.86 on induction motors) trims line current by over 10%, freeing up transformer capacity and letting plants ditch throttled valves.

Constant-Torque and Heavy Mechanical Lines: Mixers and Conveyors

Where fluid systems chase cubic speed savings, heavy material-handling and compounding lines need raw low-speed shaft torque and mechanical survival.

1. Internal Rubber Mixers, Extruders, and Rolling Mills

Compounding lines in the rubber tire industry used to rely on DC motors or high-speed induction motors bolted to multi-stage speed reducers. Those gearboxes eat power in oil-churning friction, leak lubricant, and demand alignment work. By packing more permanent magnet poles onto the rotor, ENNENG builds a low-speed, high-torque Direct Drive Permanent Magnet Motor that turns natively at single-digit RPM, coupling straight to the mixer or extruder shaft without a gearbox. Across commercial tire lines at Linglong Tire, replacing geared drives with an ENNENG Permanent Magnet Motor PMSM delivered verified electricity savings of 7% to 40% while wiping out reducer downtime.

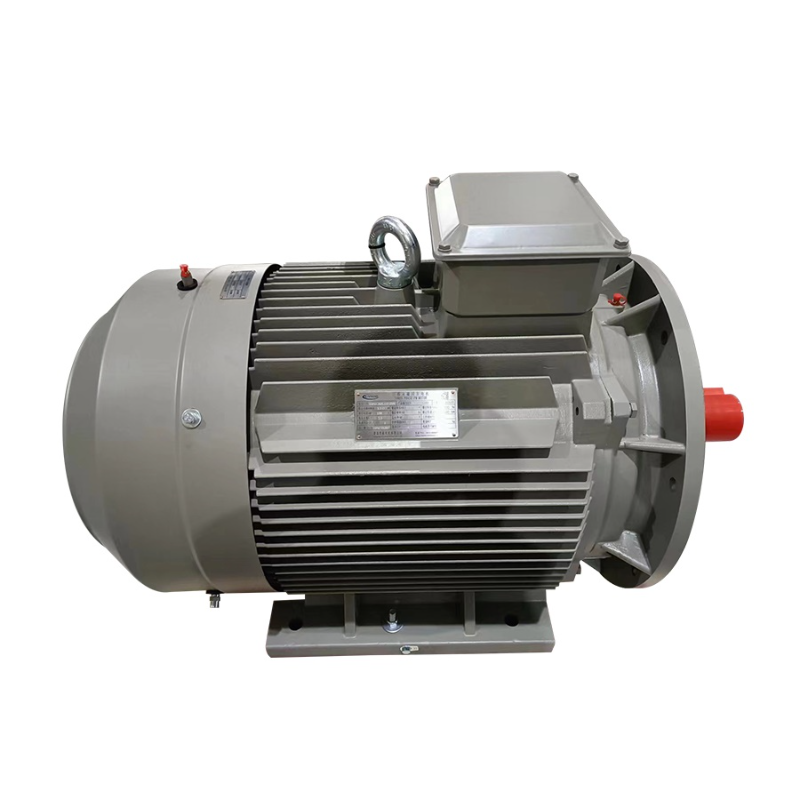

2. Mine Ore Conveyors, Slurry Feeders, and Harsh-Duty Winches

In underground mining galleries or dusty cement clinker tunnels, space is tight and rigging a replacement gearbox takes days. Because a PM Synchronous Motor eliminates rotor heat and runs 20K cooler, ENNENG engineers the motor one to two frame sizes smaller than an asynchronous unit of the same kilowatt rating. Direct coupling removes intermediate shafts, couplings, and OSHA 1910.219 guarding headaches while holding noise below 55 dB and vibration within ISO 10816 and ISO 20816 limits. Closed-loop VFD control meeting ANSI/NEMA MG 1 Part 31 and NFPA 70 rules gives loaded conveyors smooth S-curve starts.

Field Screening Checklist Before Specifying a Conversion

Supported by specialists from the National Rare Earth Permanent Magnet Engineering Centre and dozens of patents, ENNENG customizes each Permanent Magnet Motor PMSM and PM Synchronous Motor across low-voltage (110V-690V, 380V/660V/1140V) and high-voltage (6kV/10kV) footprints. Before signing off on a retrofit, engineering leads should verify three details:

• Log Shift Duty Cycles: Separate constant-torque machines (conveyors, mixers) from variable-torque loads (pumps, fans) and record kW draw.

• Match Drive & Cables: Pair the Permanent Magnet Motor PMSM with a sized VFD, verify EMC filtering, and confirm ANSI/NEMA MG 1 Part 31 insulation.

• Lock Down Field Care: Specify IP55/IP65 sealing for wet or dusty bays, grease insulated bearings on schedule, and clean fins to hold <60K temperature rise.

Talk with ENNENG Engineering

Reach out to the ENNENG engineering support team with motor logs or datasheets to get a custom Permanent Magnet Motor PMSM retrofit proposal:

• WhatsApp: +86 18562780228
• E-Mail: [email protected]
• Phone: +86 532 66000559

FAQ

Q: Which heavy-industry machines see the fastest payback from a Permanent Magnet Motor PMSM upgrade?

A: Industrial equipment with high annual running hours and variable or heavy-torque duty cycles delivers the fastest capital payback. Rotary screw air compressors achieve up to 50% verified electricity savings via dynamic VFD speed matching, while low-speed direct-drive rubber mixers and mine conveyors save 7% to 40% power and eliminate costly mechanical gearbox maintenance.

Q: Why does a PM Synchronous Motor outperform standard induction motors on partial-load pumps and fans?

A: Standard induction motors lose efficiency and power factor sharply when VFDs slow pumps or fans below 50% load. An ENNENG PM Synchronous Motor eliminates rotor copper losses, holding a flat IE5 efficiency plateau across 25% to 120% load and a 0.95 to 1.0 power factor that cuts line amps by over 10%.

Q: What power, voltage, and mounting options can ENNENG customize for heavy-industry retrofits?

A: ENNENG customizes Permanent Magnet Motor PMSM and industrial generator packages across a unified 5kW-5MW power range and 110V-690V operating voltage range (including 380V/660V/1140V and 6kV/10kV options), alongside 1kW-10kW vertical axis wind turbine generators focused on 3kW, 5kW, and 10kW models. Universal IEC/NEMA frames and direct-drive flanges fit existing plant foundations.
