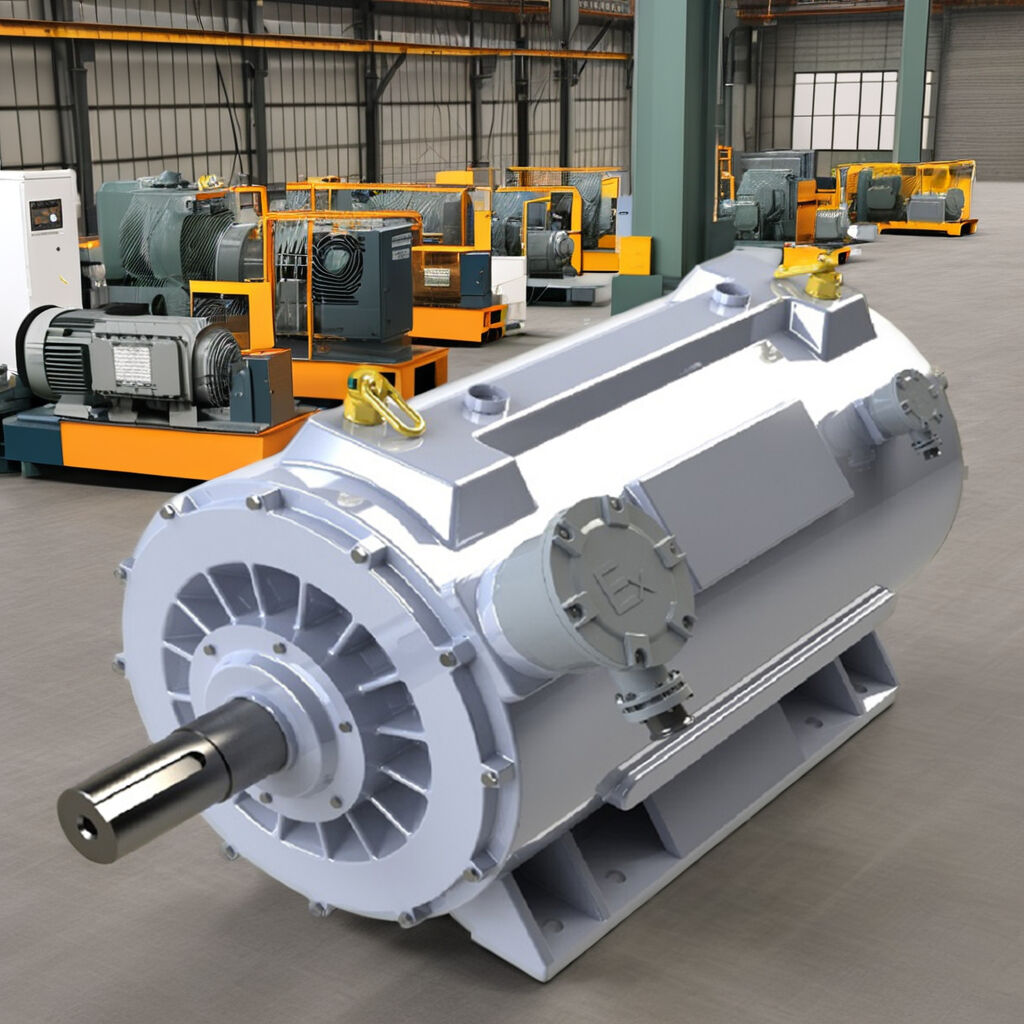

For an industrial buyer, factory delivery should mean more than a nameplate and a packing list. A Permanent Magnet Motor PMSM should leave the factory with evidence that its mechanical build, winding system, electrical characteristics, and running behavior match the agreed configuration. The exact factory acceptance test (FAT) plan depends on voltage, power, cooling, VFD arrangement, application, and contract requirements. Still, a disciplined sequence makes it much easier for engineering, procurement, and site teams to review the motor before it is shipped.
The useful question is not simply, “Was the motor tested?” It is, “Which checks were performed, against which agreed values, with what recorded results?” For a PM Synchronous Motor, that distinction matters because rotor magnets, winding design, feedback devices, and drive compatibility all affect the delivered system.
Start with the approved specification and traceability review
Before energizing a Permanent Magnet Motor PMSM, the factory should compare the production record against the approved order data. This review normally confirms rated power, speed range, voltage, frequency or converter supply, duty, enclosure and cooling arrangement, insulation class, mounting, shaft and flange dimensions, terminal-box orientation, sensors, encoder or resolver option, and any special environment requirements.
It should also establish traceability. The serial number, manufacturing record, key component batches, and selected options should point to the same delivered unit. That does not replace electrical testing, but it prevents a common acceptance problem: a technically sound motor that was built to the wrong mechanical or electrical configuration.
Perform visual, dimensional, and mechanical checks
Mechanical checks usually begin with workmanship and physical condition. Inspect the frame, coating, terminal box, cable entries, cooling features, warning labels, fasteners, seals, shaft key, and any corrosion-protection measures specified in the order. Confirm that transport protection is fitted where needed and that the rotor can be turned safely without abnormal rubbing or contact.
For a Permanent Magnet Motor PMSM intended as a replacement or OEM component, dimensional verification is particularly valuable. Buyers often need confirmation of shaft extension, keyway, mounting holes, flange register, center height, and overall interface dimensions before release. A dimension report should state the drawing revision and the instruments or gauges used where those items are contract-critical.
Verify winding health and electrical identity
The next group of tests checks whether the stator winding system is sound and correctly connected. Typical routine evidence includes phase-to-phase winding resistance comparison, insulation-resistance measurement, and, when required by the specification, a dielectric withstand or high-potential test. The acceptance values, voltage level, duration, temperature correction, and safety procedure must be agreed for the machine rather than copied from a generic checklist.
Insulation-resistance and polarization-index procedures are addressed in the IEC 60034 family for rotating-machine insulation assessment. In practice, the report should identify the test conditions, including winding temperature where relevant, because readings are only useful when their conditions are clear. A PM Synchronous Motor with optional temperature sensors should also have sensor circuit continuity and identification checked before packing.
Factories may add surge comparison, partial-discharge, or other specialized insulation tests for particular voltage classes, winding constructions, or purchaser requirements. Those are not universal routine tests. The right approach is to list them explicitly in the FAT matrix, along with the responsible party and pass/fail criterion.
Confirm no-load running and rotation behavior
A controlled no-load run gives the factory a practical opportunity to evaluate the assembled Permanent Magnet Motor PMSM. The run record can capture rotation direction, speed, line voltage or DC bus and drive settings as applicable, current, vibration, noise observations, and bearing or housing temperature trend. It may also reveal unusual mechanical noise, imbalance, fan interference, encoder feedback issues, or unstable control behavior that a static test cannot expose.
For converter-fed motors, the test setup matters. A PM Synchronous Motor must be commissioned using a compatible control mode and the correct feedback configuration. If the buyer will use a specified VFD, a witnessed integration test may be appropriate; if not, the factory should document the drive and basic control parameters used during testing rather than imply universal VFD compatibility.
Use load, performance, and temperature tests when the contract calls for them
Routine factory testing may not include full-load dynamometer testing. However, a customer may require load points, torque-speed verification, efficiency determination, temperature-rise performance, overload behavior, or a specific duty-cycle simulation. These tests should be planned early because they need suitable loading equipment, stabilized conditions, and an agreed method.
IEC 60034-2-1:2024 describes standard methods for determining losses and efficiency from tests for rotating electrical machines outside traction applications. For a Permanent Magnet Motor PMSM, that reference helps frame the discussion, but the purchase order still needs to state the required method, tolerances, correction method, and test-point conditions. A report that simply says “high efficiency tested” is much less useful than a report that identifies the measured quantities and test method.
Check vibration, balance, and bearing condition
Vibration measurement should be taken under stated test conditions and compared with the agreed acceptance requirement. The report should identify measurement locations, motor mounting condition, speed, and instrument basis. Where a balancing grade, special bearing arrangement, insulated bearing, or low-noise requirement was ordered, those items should appear as individual FAT lines rather than disappear into a general pass statement.
This is especially important when the motor will drive pumps, fans, compressors, or other equipment with tight coupling and alignment expectations. Factory motor vibration does not certify the final installed train, but it provides a baseline for site commissioning.
Verify accessories and functional protection features
Many industrial PMSM projects fail acceptance not because the core motor cannot turn, but because an accessory was missed. Confirm the terminals and circuits for PTCs, RTDs, space heaters, anti-condensation devices, bearing sensors, brakes, encoders, resolvers, forced-cooling fans, and terminal-box auxiliaries that are actually specified. Check labeling and, where relevant, feedback direction and signal integrity.
If the Permanent Magnet Motor PMSM is supplied for hazardous, corrosive, high-altitude, dusty, or high-ambient service, the FAT should refer back to the exact ordered design features and documentation. Do not treat a general factory check as proof of compliance with a site-specific regulation unless that compliance was explicitly specified and verified.
Release only with a buyer-ready documentation package
The final release review converts shop-floor work into usable acceptance evidence. At a minimum, industrial clients should ask for the approved specification or data sheet, nameplate record, dimensional drawing where applicable, routine-test report, no-load run record, any contracted load or temperature report, accessory checklist, inspection release, packing list, and operation or installation documents. Calibration traceability for critical test equipment may also be requested for witnessed or project-controlled FATs.
ENNENG can discuss test-record expectations during the specification stage so buyers can align the factory plan with their application, drive, and acceptance process. The most effective FAT is agreed before production starts: it identifies what will be tested, how results will be recorded, and which tests require buyer witnessing.
Factory-delivery checklist for industrial buyers
- Approved configuration and serial-number traceability are confirmed.
- Mechanical dimensions, mounting, shaft, labels, and physical condition are checked.
- Winding resistance, insulation tests, and specified dielectric tests are documented.
- No-load run data covers direction, speed, current, vibration, noise, and observations.
- Drive-feedback and all ordered accessory circuits are functionally verified.
- Any required load, efficiency, temperature-rise, or witness tests use agreed methods.
- The release package includes results, exceptions, and final acceptance signatures.
When these elements are visible in the FAT record, a Permanent Magnet Motor PMSM arrives as an auditable industrial component rather than an unverified shipment. That improves handover quality and gives the commissioning team a defined baseline for installation and startup.
