ENNENG custom IE5 three-phase permanent magnet motor is engineered for air compressors, screw compressors, centrifugal compressors and industrial blowers. As a PMSM air compressor motor, it supports variable-speed operation with a vector-control VFD to match changing air demand. Its permanent magnet rotor removes induction-motor slip losses. Options include 5.5–6300 kW, 20–3000 rpm, IP55/IP56 protection, Class F/H insulation and S1 duty. Suitable for compressor OEM integration, IE2/IE3 motor replacement, wastewater aeration and pneumatic conveying, it helps assess energy use and total cost. Request a quote with power, speed, voltage, air-end model and mounting dimensions.
Product Overview and Working Principle
The Custom High‑Efficiency IE5 PMSM for Industrial Air Compressors is developed to address the high energy consumption inherent in conventional compressed air systems. Unlike traditional induction motors that suffer from significant efficiency drops at partial loads, the PMSM series maintains ultra‑high efficiency even when the compressor operates at low speeds or reduced air demand. This motor is designed to be paired with a dedicated Variable Frequency Drive (VFD), allowing the compressor to modulate its output precisely to match site demand.
The rotor is constructed with high‑performance permanent magnets, ensuring that rotational speed is perfectly synchronized with the supply frequency. This synchronization removes the "slip" losses found in asynchronous motors, resulting in a drive system that runs cooler and more efficiently. For facility managers and OEM builders, this series provides a robust path to achieving carbon neutrality goals while reducing the total cost of ownership (TCO) for air handling equipment.
Key Features
IE5 Ultra‑Premium Efficiency: Surpasses international IE4/IE5 standards, significantly reducing specific power (kW/m³/min) for compressor packages.
High Power Factor: Operates at 0.98–0.99 naturally, reducing reactive power demand and heat generation in the electrical infrastructure.
Wide Speed Regulation: Maintains high torque and efficiency from 10% to 120% of rated speed, ideal for variable air volume control.
Compact & Lightweight: Approximately 30% smaller in volume and 35% lighter than equivalent induction motors, simplifying integrated compressor design.

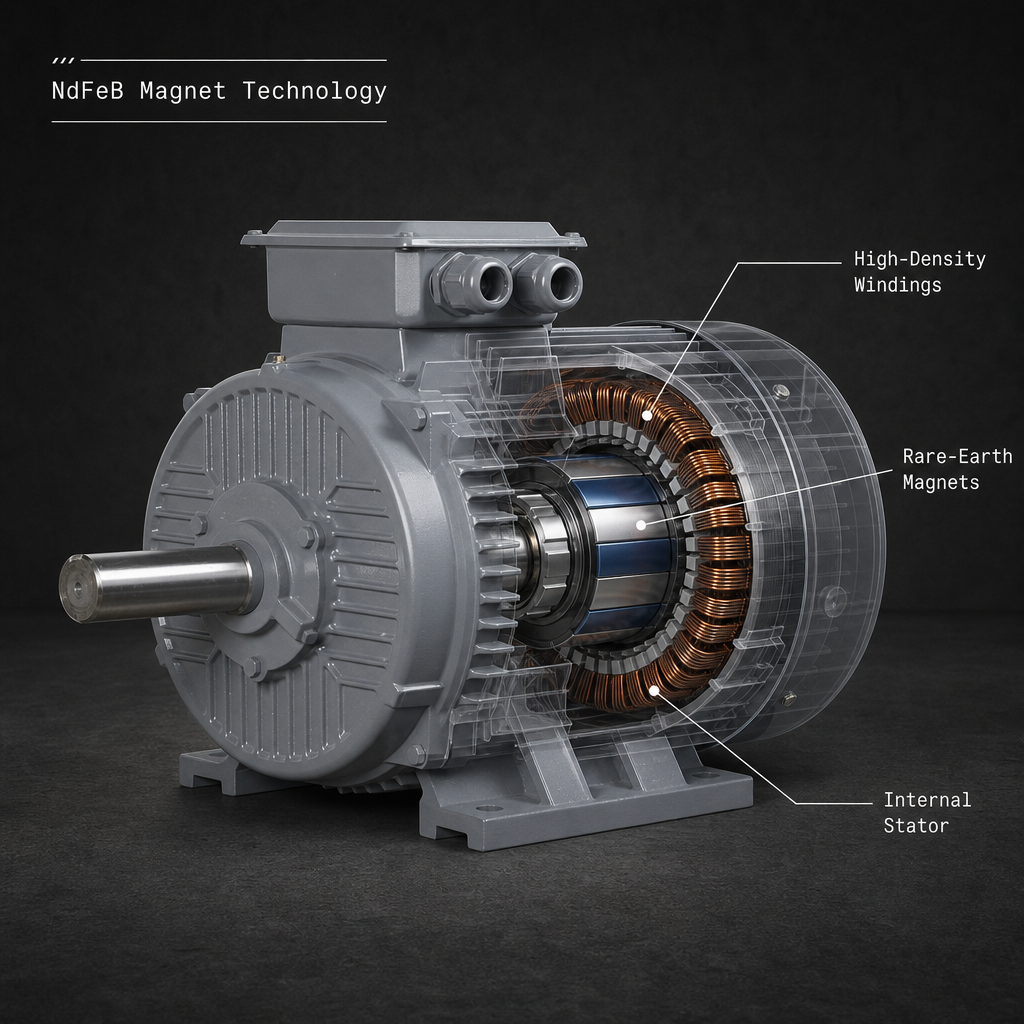

High Coercivity Magnets: Uses NdFeB magnets with advanced coatings to ensure long‑term stability and resistance to thermal demagnetization up to 150°C.
Low Noise & Vibration: Precision rotor balancing and electromagnetic optimization contribute to a quieter compressor room environment.
Technical Specifications
Item |
Published Details |
|---|---|
Product Type |
Custom 3‑Phase PMSM for Air Compressors |
Power Range |
5.5–6300 kW (Customizable) |
Rated Voltage |
380 V / 400 V / 660 V / 1140 V |
Efficiency Class |
IE5 (Ultra‑Premium) |
Speed Range |
20 – 3000 RPM (Application dependent) |
Protection Level |
IP55 / IP56 |
Insulation Class |
Class F / Class H |
Duty Cycle |
S1 continuous duty |
Power Factor |
0.98–0.99 |
Warranty |
1 year, with technical selection support |
Technical Perspective

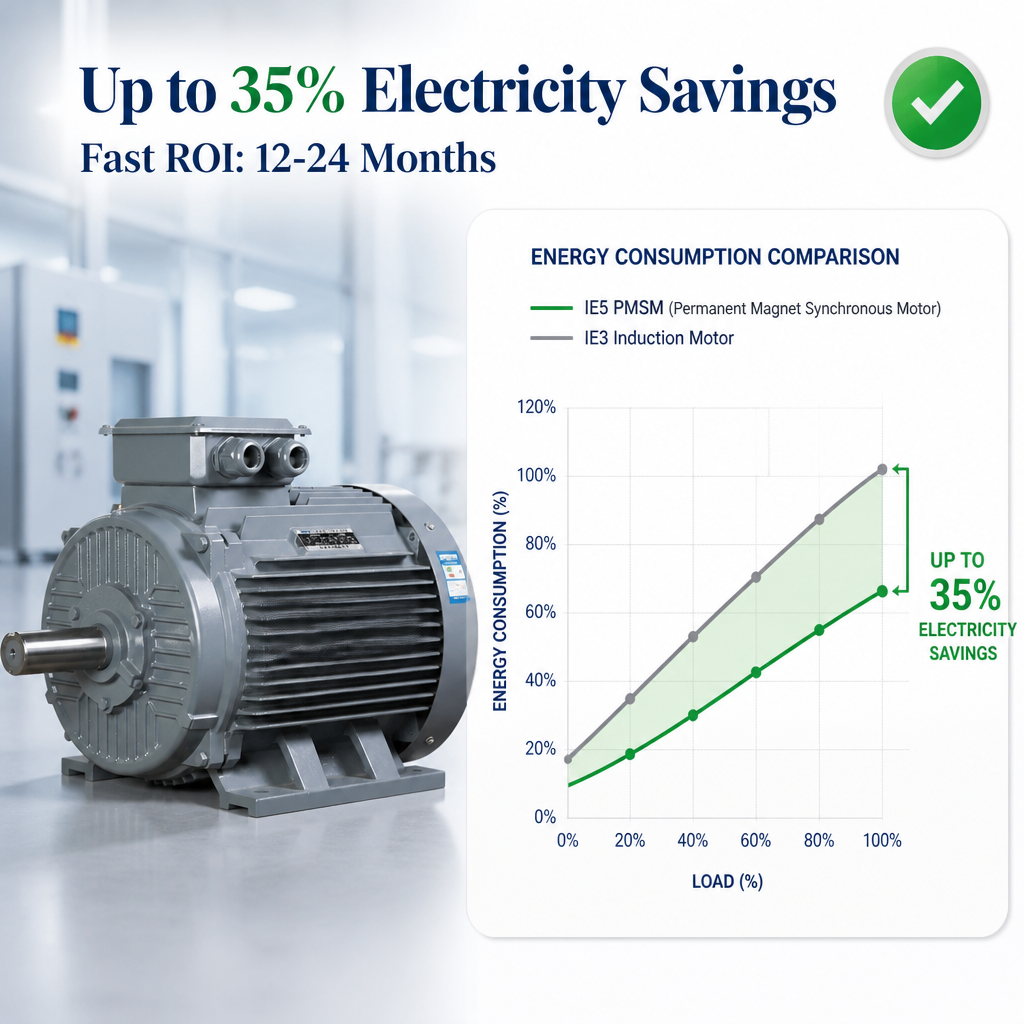

In industrial air compressor applications, the "Specific Power" (energy consumed per unit of air produced) is the primary metric of performance. Conventional motors lose substantial efficiency when the VFD slows the motor down during unloading or low‑demand periods. In contrast, the ENNENG IE5 PMSM maintains a nearly flat efficiency curve down to 25% load. This characteristic directly translates to "Electricity Savings" that are often 15% to 35% higher than induction‑based systems over an annual duty cycle.
Furthermore, the higher power factor of the PMSM reduces the current demand for the same kilowatt output. This lowers the thermal stress on cables, contactors, and the upstream transformer, potentially reducing the required capacity of the factory's electrical supply system. When combined with a high‑performance vector‑control VFD, the motor provides the fast response needed to maintain constant line pressure within ±0.1 bar.
Applications

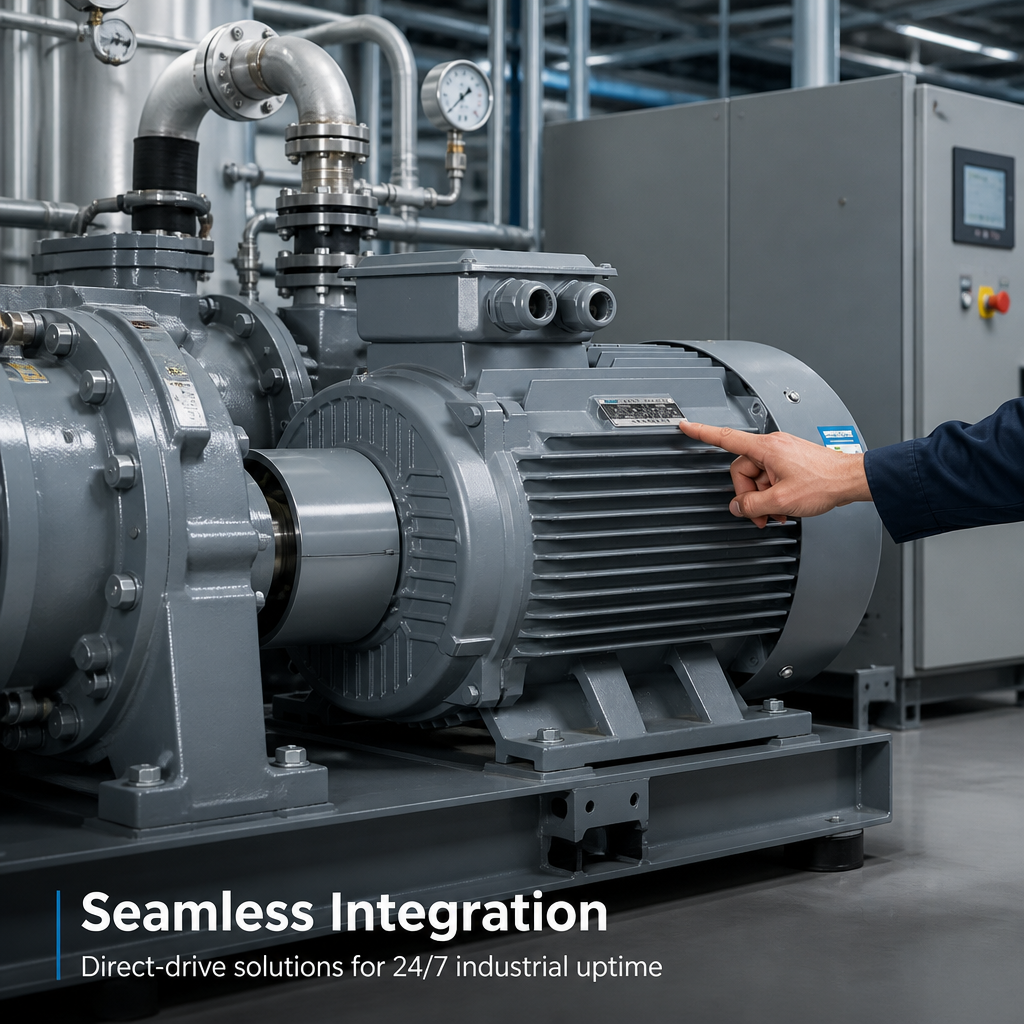

Screw Air Compressors: The most common application where the PMSM's variable speed efficiency delivers the fastest payback. Suitable for both oil‑injected and oil‑free screw packages.
Centrifugal Compressors: High‑speed versions of the custom PMSM can be integrated to provide the high RPM and high power density required for large centrifugal air handling units.
Retrofit Upgrades: Designed as a drop‑in replacement for old IE2/IE3 induction motors in existing compressor installations to achieve immediate energy reduction.
Industrial Blowers: High‑volume air delivery systems in wastewater treatment or pneumatic conveying that benefit from precise flow control and IE5 efficiency.
Commercial Value and Selection
The commercial value of an IE5 PMSM upgrade for air compressors is primarily driven by the "Payback Period." Given that air compressors often run for 6,000 to 8,000 hours per year, the 20–30% reduction in electricity costs typically covers the initial price premium within 12 to 18 months. ENNENG provides a comprehensive ROI calculator to help buyers quantify these savings based on their local electricity tariffs and operating profile.
Selection involves matching the motor's speed/torque curve to the specific screw air end requirements. We recommend providing the air end's peak power demand, rated speed, and mounting dimensions (B3, B5, or custom flange) for a tailored solution. Our engineering team can also assist in verifying compatibility with your existing VFD or supply an integrated "Drive + Motor" package.
FAQ
Q: Does this motor work with any VFD?
A: No. It requires a VFD with permanent magnet control software (Vector Control). While most modern high‑end drives support this, we recommend verifying parameters or using an ENNENG‑certified drive.
Q: How do you prevent the magnets from demagnetizing?
A: We use high‑coercivity NdFeB magnets and ensure the motor's thermal design (Class F/H insulation) keeps operating temperatures well below the demagnetization threshold.
Q: Is the mounting size the same as a standard induction motor?
A: We offer standard IEC frame dimensions for easy replacement, but because the PMSM is smaller, we often provide custom adapters or flanges to ensure a perfect fit for your compressor cabinet.
Q: What data do I need to provide for a custom quote?
A: Please provide the required rated power, rated speed, input voltage, and the specific application (e.g., screw compressor air end model).
