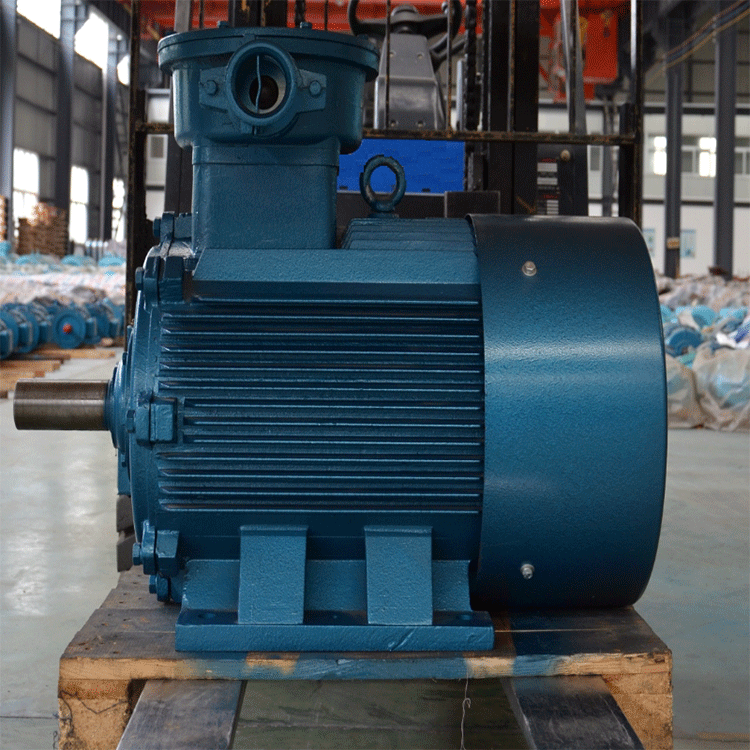

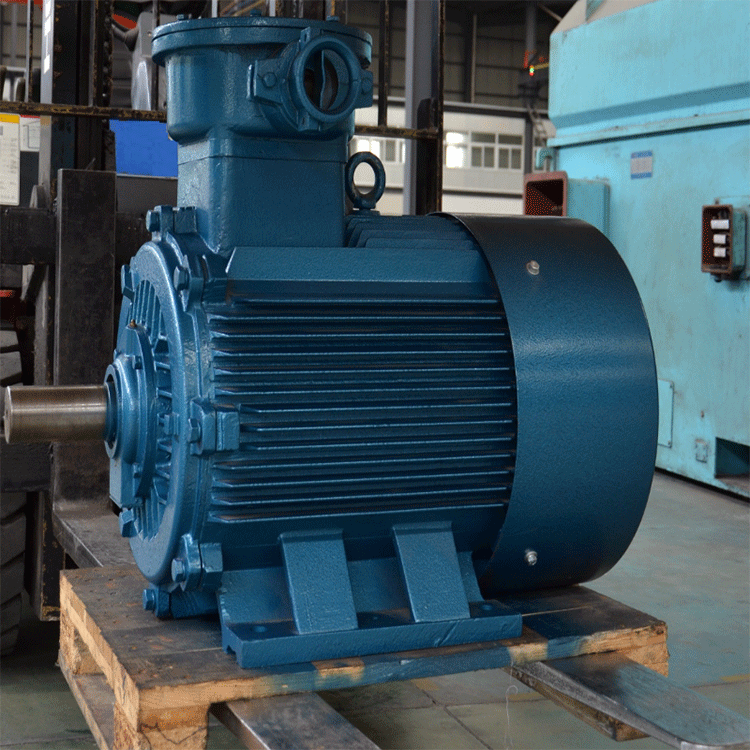

TYB Industrial PMSM Motor for Pumps, Fans and Compressors

Evaluating a PMSM motor for an industrial application typically starts with price. That is reasonable but the upfront cost difference between a permanent magnet synchronous motor and a standard induction motor rarely tells the full story. Energy costs over years of continuous operation, maintenance labor, and unplanned downtime are the numbers that determine whether a motor choice was right or wrong. The Enneng TYB Series high efficiency motor is built for buyers who need the complete picture.

The TYB Series is a Standard Type Permanent Magnet Synchronous Motor (PMSM) certified to IE4 and IE5 Ultra-Premium Efficiency standards. Frame sizes cover 90 to 710, power range 5.5 kW to 6300 kW, rated speeds 3000, 1500, 1000, and 750 rpm all customizable. Protection class IP55, insulation class F, duty cycle S1 continuous. Rated voltage options: 380V, 690V, 3300V, and 10000V AC.

Why Partial-Load Efficiency Determines Real Operating Costs

It is true that permanent magnet motors carry a higher upfront cost than induction motors at equivalent ratings and for applications running consistently at full load, the efficiency premium may not close that gap alone. But in most industrial environments, motors do not operate at full load most of the time. Pumps throttle down when demand drops. Compressors cycle. Fans modulate with seasonal changes. The TYB Series energy saving motor sustains IE5-class efficiency across the full operating range, including at 25% partial load precisely where conventional induction motors lose efficiency most steeply. For facilities where motors routinely operate between 40% and 70% of rated capacity, this produces measurable kilowatt-hour savings on every utility bill.

Core Technical Features

1. IE5 Ultra-Premium Efficiency

The TYB Series meets and exceeds IE5 Ultra-Premium Efficiency requirements the highest efficiency tier recognized under international electrical machinery standards. Compared to a standard IE3 asynchronous motor, this high efficiency PMSM delivers a 15%–35% efficiency gain at full load. When site ambient temperature remains within 40°C, this rating is a reliable planning figure for energy cost modeling. For a single 100 kW unit in continuous operation, the annual energy cost difference is measurable in thousands of dollars.

2. Compact, High Power Density Design

The TYB Series permanent magnet synchronous motor is approximately 35% smaller in volume and 40% lighter than an equivalent induction motor. Retrofit projects into existing pump skids and fan chambers frequently face tight dimensional constraints that require mechanical reengineering. The compact footprint of the TYB Series resolves most of these conflicts without structural modification reducing the hidden project costs that make motor upgrade programs more expensive than they first appear.

3. Full Torque from Near-Zero Speed

The TYB Series delivers constant, full-rated torque from near-zero RPM through to rated speed. This is a genuine operational advantage for heavy-start applications  conveyors, mixers, injection moulding machines where inadequate starting torque creates mechanical shock or accelerates bearing wear. Problems with starting performance under load tend to appear after installation, at the point when they are expensive to resolve.

4. Thermal Management for Long Service Life

Available with IC411 self-fan cooling or IC416 forced-fan cooling, both designed to maintain a stable thermal profile throughout the motor's service life. F-class insulation, combined with lower operating temperatures from eliminating rotor copper losses, extends bearing and winding life significantly. Facilities transitioning from standard motors to the TYB Series typically report reductions in unplanned maintenance downtime of up to 40%.

Technical Specifications

Application Scenarios

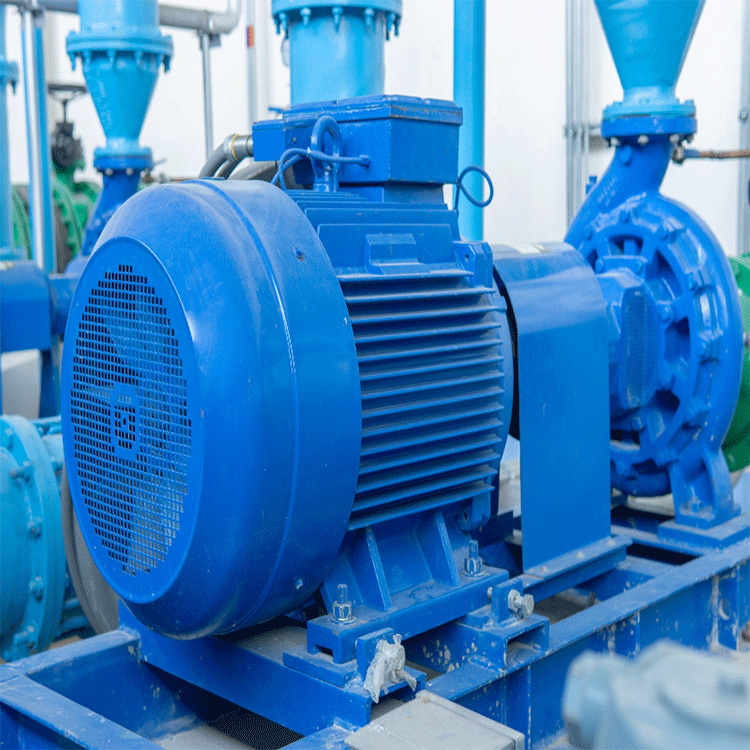

Industrial Pumps and Water Treatment

The TYB Series PMSM motor is among the most effective energy saving motor solutions for centrifugal pump and water treatment applications. Pump systems rarely operate at full rated load flow demand varies constantly with process requirements. The TYB Series sustains IE5 efficiency at these variable operating points, where conventional induction motors lose efficiency and power factor simultaneously. Facilities applying this permanent magnet synchronous motor to pump drives consistently achieve 15%–35% comprehensive energy savings and eliminate reactive power penalties in variable-load environments.

Air Compression and HVAC Systems

Rotary screw compressors and large HVAC fan systems are among the highest electricity consumers in industrial facilities. Integrating the TYB Series high efficiency motor into compressor or fan drives delivers measurable ROI  zero rotor copper loss and sustained efficiency at variable speeds can reduce compressed air and ventilation energy costs by up to 20%. For HVAC applications, full ROI is typically achieved within 6 to 18 months, with system efficiency improvements of up to 35% over legacy motors.

What Distinguishes the TYB Series

The purchase decision for a PMSM motor usually starts with unit price, but the number that ends up mattering most over a 5-year to 10-year deployment is operating energy cost combined with maintenance labor. For S1 continuous duty applications operating below full load for a significant portion of annual hours, the TYB Series IE5 motor consistently delivers better lifecycle economics than conventional induction motor alternatives. All NdFeB permanent magnets are treated with a molecular-level protective coating that prevents demagnetization from heat, humidity, or chemical exposure addressing one of the most common reliability concerns buyers raise about permanent magnet motor technology.

All permanent magnet synchronous motors require a Variable Frequency Drive (VFD) for starting and speed control. The TYB Series is optimized for high-performance vector control inverters, ensuring precise speed regulation and peak efficiency recovery across the full load range. The motor is compatible with standard industrial VFD brands. Global technical support from Enneng is available for every TYB Series installation; on-site commissioning services are available for large-scale industrial projects. With MOQ starting at 1 unit and customizable configurations for power, speed, voltage, and efficiency class, the TYB Series is accessible for replacement procurement and new-build project specifications alike.
