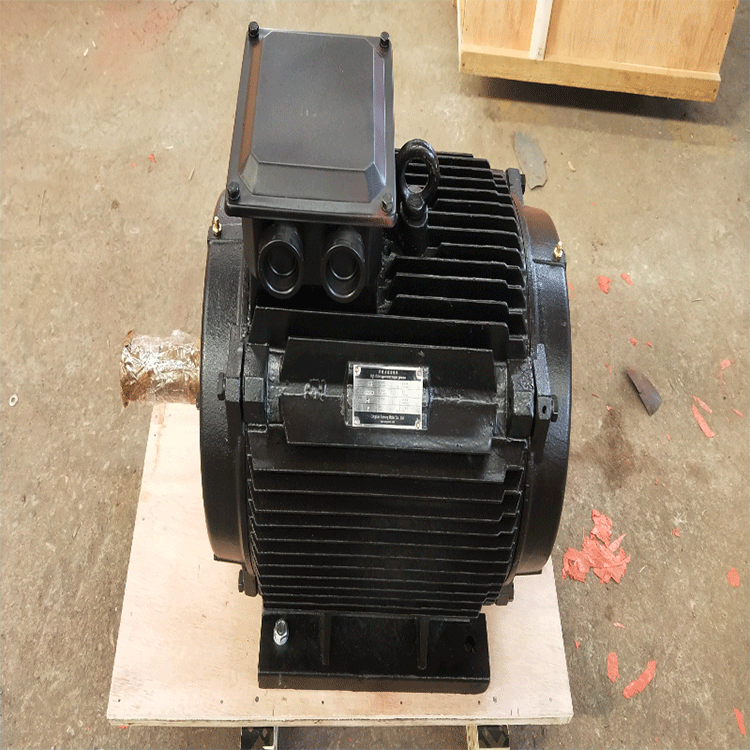

Diesel-Powered Permanent Magnet Generator

Qingdao Enneng Motor CO., Ltd. supplies the Diesel‑Powered Permanent Magnet Generator for diesel‑engine‑driven power packages that need a compact brushless alternator. It is suitable for generator‑set builders, equipment integrators, rental operators, and industrial users who need a generator matched to engine, voltage, speed, and site conditions. The Diesel‑Powered Permanent Magnet Generator uses a permanent‑magnet field instead of a conventional wound excitation assembly. This design removes carbon brushes and slip rings from the generator structure.

Available rated power covers 5KW to 5MW. Standard speed references are 1500 rpm for 50 Hz systems and 1800 rpm for 60 Hz systems. Output voltage can be configured from 110 V to 690 V. Qingdao Enneng Motor CO., Ltd. can coordinate flange and shaft dimensions for engine matching, helping purchasers evaluate the generator as part of a complete power package rather than as an isolated component.

Basic Description and Working Principle

A permanent magnet generator creates its magnetic field through permanent magnets instead of a separate excitation system. In a Diesel‑Powered Permanent Magnet Generator, engine rotation drives the rotor, and the magnetic field interacts with stator windings to produce electrical output. The brushless generator arrangement reduces service items associated with brushes and slip rings. It also gives engineers a practical basis for reviewing maintenance access, enclosure space, cooling method, and electrical connections.

For fixed‑speed generation, the diesel engine, generator winding, output voltage, coupling, and control arrangement should be considered as one system. Where a project needs close voltage control under changing conditions, the final control solution should be specified with the completed genset. Qingdao Enneng Motor CO., Ltd. recommends confirming duty cycle, load type, ambient condition, and protection requirement before choosing a permanent magnet generator configuration.

Key Features

• Brushless permanent‑magnet construction without carbon brushes or slip rings in the generator structure.

• Rated power range of 5KW to 5MW for diesel power packages.

• 1500 rpm reference for 50 Hz systems and 1800 rpm reference for 60 Hz systems.

• Configurable output voltage from 110 V to 690 V.

• IP23 or IP54 protection options, depending on the selected design.

• IC01 air cooling or ICW81 water cooling options.

• Source specifications list peak efficiency of at least 95% and total harmonic distortion below 2%; confirm these values for the selected model and test condition.

• Flange and shaft matching support for diesel‑engine integration.

Technical Parameters

Technical and Commercial Value

The Diesel‑Powered Permanent Magnet Generator is designed around a permanent‑magnet field rather than a conventional brush and slip‑ring arrangement. This can simplify maintenance planning for the wider engine‑generator package, particularly where service access is limited. Actual maintenance intervals still depend on the engine, controller, enclosure, operating hours, and local operating conditions.

For equipment designers, a permanent magnet generator may be a practical option when an enclosure, trailer, skid, or remote power station has defined layout limits. Final dimensions and coupling requirements must be confirmed for the chosen unit.

Power quality is another important selection point. The supplied specification identifies total harmonic distortion below 2% for applicable configurations. For communications equipment, control panels, data‑support equipment, or other sensitive loads, purchasers should confirm harmonic performance with the exact generator, controller, load profile, cable arrangement, and test method.

Applications

A Diesel‑Powered Permanent Magnet Generator can be considered for telecom backup systems, data‑support infrastructure, mobile power stations, rental fleets, mining support equipment, construction sites, and remote off‑grid power packages. These applications have different duty cycles and environmental demands, so a single diesel generator alternator configuration is not suitable for every project.

For telecommunications and distributed infrastructure, buyers often focus on compact packaging, stable output, and access for planned maintenance. For rental and mobile power, transport layout, cooling airflow, coupling protection, and repeated handling deserve attention. Mining and construction projects may need a protection level and cooling arrangement suited to dust, moisture, and local service conditions. Remote power projects benefit from early engineering discussion about fuel logistics, engine service access, spare parts, and the intended load profile.

Selection and Integration Guidance

To request a suitable permanent magnet generator, prepare a concise application brief with required power, frequency, output voltage, engine speed, load type, cooling preference, protection requirement, installation envelope, and destination standards. If the application includes motors, variable‑speed drives, UPS equipment, communications loads, or other sensitive electronics, include expected load behavior and power‑quality expectations. Qingdao Enneng Motor CO., Ltd. can use this information to coordinate the mechanical interface and review an appropriate Diesel‑Powered Permanent Magnet Generator configuration.

It is useful to distinguish prime‑power, standby, and intermittent operating patterns. These terms affect engine sizing, heat management, service planning, and final selection. Before releasing a purchase order, buyers should request model‑specific drawings, performance information, wiring details, and applicable certificates. That process supports transparent technical review and can reduce avoidable integration changes.

FAQ

Q:Can this permanent magnet generator match different diesel engines?

A:Qingdao Enneng Motor CO., Ltd. can coordinate flange and shaft dimensions. Compatibility should be confirmed with the engine model, speed, coupling details, and application requirements.

Q:Is IP54 available for every unit?

A:IP23 and IP54 are listed options. Availability depends on the selected design, cooling method, and project configuration.

Q:How is voltage controlled without a conventional excitation assembly?

A:The final voltage‑control approach depends on the completed genset and operating requirement. Applications with demanding regulation needs should be evaluated with the matched control solution.

Q:What information is needed for a quotation?

A:Provide power, voltage, frequency, speed, cooling method, protection level, engine details, application, and destination requirements. Qingdao Enneng Motor CO., Ltd. can then review the configuration more accurately.
