TYDP Series Direct-Drive PMSM Motors for Low-Speed, High-Torque Applications

The TYDP Series Direct Drive Permanent Magnet Motor is a Direct Drive PMSM Motor for low-speed, high-torque industrial equipment. It is designed to deliver torque directly at the driven shaft, reducing the need for a gearbox where the mechanical layout and application conditions support gearless operation. This Gearless Motor range can be considered for cooling-tower fans, ball mills, agitators, belt conveyors, and sucker-rod pumping equipment. Qingdao Enneng Motor CO., Ltd. matches the motor configuration to the duty cycle, torque requirement, speed, mechanical interface, and site environment.

A Direct Drive PMSM Motor uses a multi-pole permanent-magnet rotor to produce low-speed torque without a conventional motor-and-gearbox assembly. For an industrial project, the value of a Gearless Motor depends on the complete drivetrain: the driven machine, shaft connection, support structure, control arrangement, cooling method, and maintenance access should all be reviewed before selection.

Direct Drive PMSM Motor Design

The TYDP Series is a low speed high torque motor using NdFeB permanent magnets and a multi-pole rotor structure. A Direct Drive PMSM Motor can be configured for rated speeds of 20, 50, 100, 200, or 500 rpm. This makes the series relevant when a machine needs controlled low-speed rotation and a direct shaft connection is technically suitable. The final torque, frame size, and cooling arrangement should be selected from the actual load profile rather than from speed alone.

As a Gearless Motor, the TYDP Series can simplify the mechanical transmission path by removing a gearbox in applicable equipment designs. This does not mean every machine should be converted to direct drive. Existing mounting space, alignment, start-up torque, inertia, braking requirements, and the operating process need evaluation. Qingdao Enneng Motor CO., Ltd. uses these inputs to discuss whether a Direct Drive PMSM Motor is appropriate for a new installation or retrofit.

Key Features

• Direct Drive PMSM Motor architecture for low-speed industrial drive applications.

• Low speed high torque motor options with rated speeds from 20 rpm to 3000 rpm.

• Rated output torque above 100,000 N·m for applicable selected configurations.

• Power range from 5.5 kW to 6300 kW and frame sizes from 132 to 710.

• IE4 / IE5 efficiency motor options for comparison within a system-level energy assessment.

• IP55 / IP56 protection options, Class F insulation, and IC411, IC416, or IC71W cooling options.

• Suitable for VFD-based speed regulation when paired with a compatible control solution.

• Minimum order quantity of one unit and a listed one-year warranty.

Technical Specifications

Engineering Advantages

A low speed high torque motor can provide useful control where high torque is required at low rotational speed. In a Direct Drive PMSM Motor arrangement, the motor is selected to work with the process load instead of relying on a gearbox for speed reduction. The result may be a shorter drivetrain in suitable applications. Actual noise, vibration, energy use, and maintenance needs depend on the machine design, installation quality, loading, controls, and operating environment.

An IE5 efficiency motor classification is a motor-level reference, not a universal energy-saving promise. When comparing an IE5 efficiency motor with another drive option, engineering teams should consider running hours, part-load operation, VFD settings, mechanical transmission losses, and the baseline equipment. A site-specific assessment gives a clearer view of whether a Direct Drive PMSM Motor can support the intended operating goals.

For a Gearless Motor project, maintenance planning also changes because the gearbox is not part of the drivetrain. Bearing condition, cooling system operation, mounting integrity, alignment, and electrical controls remain important. This practical approach helps teams evaluate a low speed high torque motor around the service plan they can support.

Typical Applications

Cooling Towers

A Direct Drive PMSM Motor can be evaluated for cooling-tower fans where low-speed fan rotation and a gearless drivetrain suit the mechanical design. The IP protection level, cooling method, fan inertia, site humidity, and VFD strategy should be confirmed for each cooling-tower project.

Ball Mills and Agitators

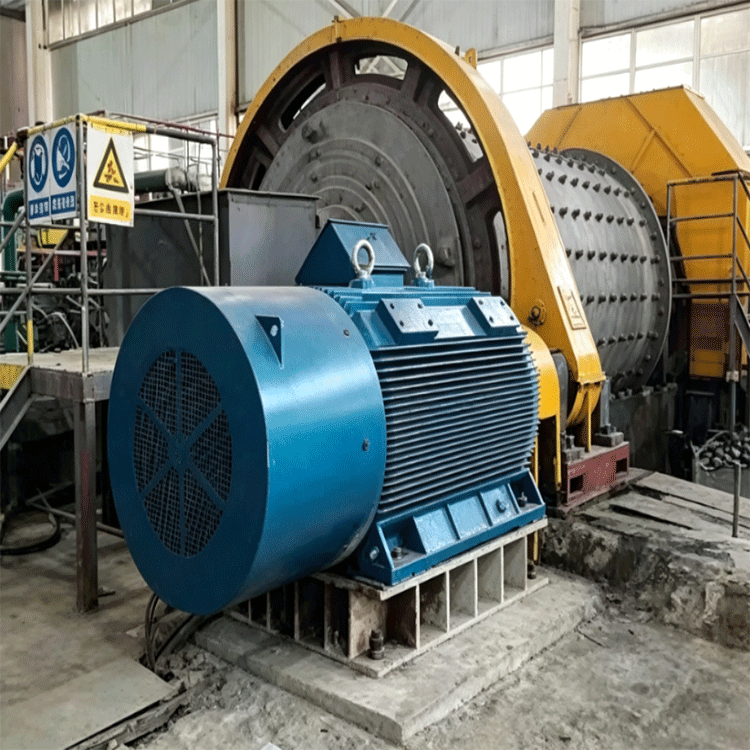

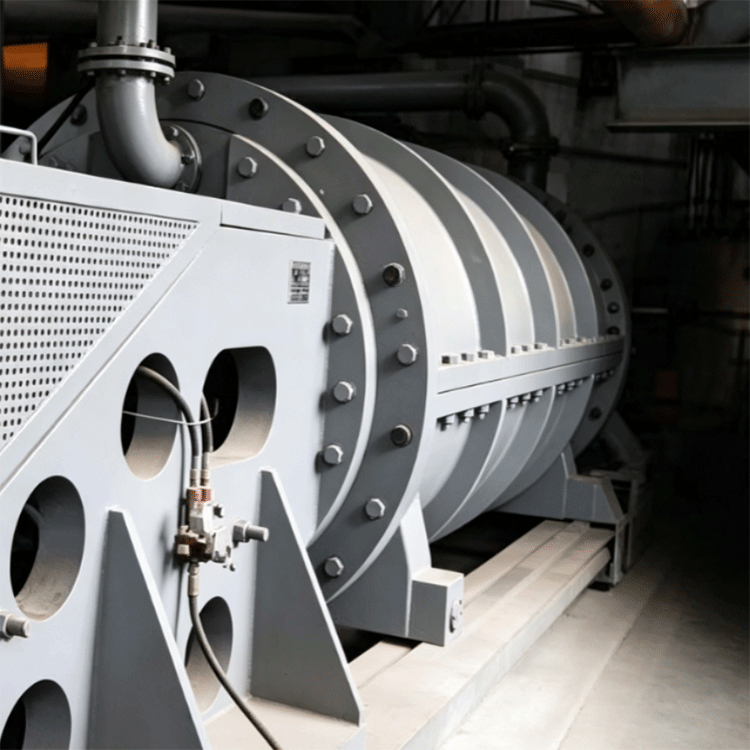

Ball mills and industrial agitators can demand controlled low-speed torque. A low speed high torque motor may be selected after reviewing process load, starting conditions, shaft arrangement, and the mechanical support system. A Gearless Motor layout should be evaluated as part of the complete mill or agitator drive.

Large Belt Conveyors

For belt conveyors, a Direct Drive PMSM Motor can be considered where speed control, starting torque, conveyor loading, and drive layout support a direct connection. The motor, VFD, braking arrangement, and conveyor mechanics need coordinated engineering.

Oil Extraction Pumping Units

A Gearless Motor can be considered for sucker-rod pumping equipment when the cyclic torque profile, environmental exposure, control needs, and service access are known. The Direct Drive PMSM Motor configuration should be matched to the specific pumping-unit mechanics.

Selection Guidance

To select a Direct Drive PMSM Motor, provide the required power, nominal and maximum torque, speed range, load inertia, starting method, duty cycle, mechanical interface, enclosure conditions, temperature, altitude, and available utilities. This information helps Qingdao Enneng Motor CO., Ltd. propose a relevant low speed high torque motor configuration.

For retrofit work, compare the existing motor-and-gearbox assembly with the proposed Gearless Motor arrangement. Confirm dimensions, shaft connection, foundation, electrical supply, VFD compatibility, protection level, and service procedure before making a final decision. The goal is a technically matched direct-drive solution, not a generic replacement.

FAQ

Q:What is a Direct Drive PMSM Motor?

A:A Direct Drive PMSM Motor is a permanent magnet synchronous motor configured to drive a load directly where the equipment design supports a gearbox-free arrangement.

Q:Can this Gearless Motor replace every gearbox-driven system?

A:No. A Gearless Motor should be selected only after reviewing torque, speed, mechanics, installation space, controls, and the operating process.

Q:When is a low speed high torque motor useful?

A:A low speed high torque motor can be useful for equipment such as fans, mills, conveyors, agitators, and pumping units that require torque at lower operating speeds.

Q:How should an IE5 efficiency motor be evaluated?

A:An IE5 efficiency motor describes an efficiency classification. Actual system energy use depends on loading, controls, transmission losses, operating hours, and equipment condition.

Q:Does the TYDP Series require a VFD?

A:A Direct Drive PMSM Motor is typically used with a compatible VFD and control arrangement for starting and speed regulation. Final compatibility should be confirmed for the selected configuration.
