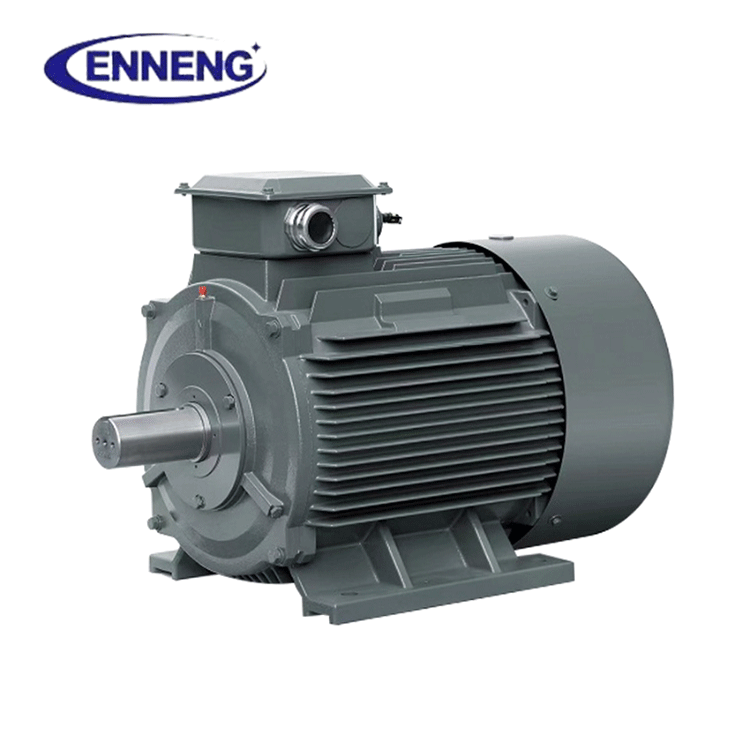

Line-Start PMSM Motor for Fixed-Speed Fans, Pumps and Compressors

Product Overview

The Line-Start PMSM Motor for Fixed-Speed Fans, Pumps and Compressors is intended for industrial equipment that normally runs at a fixed speed and needs a practical route from induction‑motor operation to permanent‑magnet synchronous technology. The motor is designed for direct connection to the power line, rather than requiring an external variable‑frequency drive for its basic start. This approach can suit applications with a simple control arrangement and a driven load appropriate for across‑the‑line starting.

The rotor combines an induction‑start element with permanent magnets. During start‑up, the induction element develops torque as the motor accelerates. Near the synchronous speed determined by the supply frequency and pole configuration, the permanent‑magnet field is designed to pull the rotor into synchronism. After pull‑in, the Line‑Start Permanent Magnet Synchronous Motor runs at synchronous speed. This differs from a conventional induction motor, which normally operates below synchronous speed because of slip.

For maintenance teams, equipment builders, and purchasing groups, the Line-Start PMSM Motor for Fixed-Speed Fans, Pumps and Compressors offers a defined motor concept for steady‑duty equipment. Its value should be assessed against the actual duty profile, shaft load, acceleration demand, ambient temperature, protection requirement, and electrical supply. Qingdao Enneng Motor CO., Ltd. recommends confirming these factors before selecting a specific rating.

Key Features

• Direct line start: The Line-Start PMSM Motor for Fixed-Speed Fans, Pumps and Compressors is designed to start from the electrical supply and move toward synchronous running without a VFD being required for the basic start.

• Hybrid rotor: An induction‑start structure works with permanent magnets to support acceleration and synchronous operation.

• Fixed‑speed operation: The series is intended for equipment that benefits from stable speed at the available line frequency.

• Published efficiency classes: Source material identifies IE4/IE5 options; the applicable class should be checked for the requested configuration and market.

• Power‑factor data: The published range is 0.96–0.99, subject to the selected motor and operating point.

• Continuous‑duty data: S1 duty, Class F insulation, and IP54/IP55 protection options are listed in the supplied information.

Technical Specifications

These data points describe the supplied TYJ series information and do not replace a motor nameplate, outline drawing, or project‑specific selection sheet. Voltage, frequency, enclosure, mounting, shaft dimensions, terminal arrangement, and efficiency class can vary by rating and order configuration. Buyers should request the appropriate documentation for the required model.

Technical Perspective

A conventional induction motor uses slip to produce torque, which creates rotor losses during normal running. In a Line‑Start Permanent Magnet Synchronous Motor, the permanent‑magnet field supports synchronous operation after pull‑in. For this reason, permanent‑magnet motor technology is often evaluated where energy use, thermal behavior, and power factor are important parts of an equipment review. Actual performance depends on motor loading, supply quality, operating hours, mechanical transmission losses, and the condition of the equipment being replaced.

The published power‑factor range may also be relevant to a fixed‑speed motor‑system review. Power factor influences the relationship between useful power and current demand. Cables, switching devices, protection settings, and any existing power‑factor‑correction arrangement should be reviewed together. A motor change should be evaluated as part of the whole system, rather than as an isolated assumption.

Applications

Fans and blowers: The Line-Start PMSM Motor for Fixed-Speed Fans, Pumps and Compressors can be considered for ventilation and air‑handling equipment that normally operates at a fixed speed. Fan inertia, starting torque, damper position, and supply capacity should be reviewed before selection.

Pumps: Fixed‑speed water, process, and circulation pumps may be suitable where direct‑on‑line starting is appropriate. Engineers should check pump curves, starting conditions, pipe‑system behavior, and the required operating point.

Industrial compressors: For compressor packages with a compatible constant‑speed arrangement, the Line‑Start Permanent Magnet Synchronous Motor can be evaluated alongside starting torque and the compressor load profile.

Textile machinery: Textile equipment with steady rotational requirements can be assessed with attention to speed consistency and continuous operation. Transmission details, acceleration time, and process conditions still need project‑specific review.

Commercial Value and Selection

The commercial value of a Line‑Start Permanent Magnet Synchronous Motor comes from matching motor technology to the process. In a constant‑speed application, direct line starting may simplify the starting arrangement compared with systems designed around a drive. A project review should include motor cost, electrical installation, protection coordination, commissioning, maintenance practice, and expected operating schedule.

For retrofit work, compare the existing motor’s measured input power, loading level, starts per hour, service history, and running time with the proposed machine model. This creates a more transparent basis for an energy and cost review than a generic savings statement. Applications with high inertia, frequent starts, variable‑speed demand, or unusual supply conditions should be reviewed by Qingdao Enneng Motor CO., Ltd. before a configuration is chosen.

Frequently Asked Questions

Q:Does the Line-Start PMSM Motor for Fixed-Speed Fans, Pumps and Compressors need a VFD for normal starting?

A:The supplied information describes the TYJ series as a line‑start motor for direct‑on‑line starting. Whether a VFD is appropriate for a particular project should be confirmed for the selected configuration and application.

Q:What speed will the motor run at?

A:After successful pull‑in, the motor operates at synchronous speed determined by supply frequency and pole configuration. Refer to the selected model documentation for the rated speed.

Q:Can it replace an existing induction motor?

A:It may be evaluated for replacement, but mechanical dimensions, electrical rating, starting load, protection requirements, and mounting details must be confirmed for the installation.

Q:What information is needed for selection?

A:Please provide driven equipment, required power, supply voltage and frequency, operating hours, load inertia, start frequency, ambient conditions, mounting arrangement, and site standards.

Q:What warranty information is available?

A:The supplied material states a one‑year warranty. Final coverage should be confirmed in the applicable quotation and order documents.
