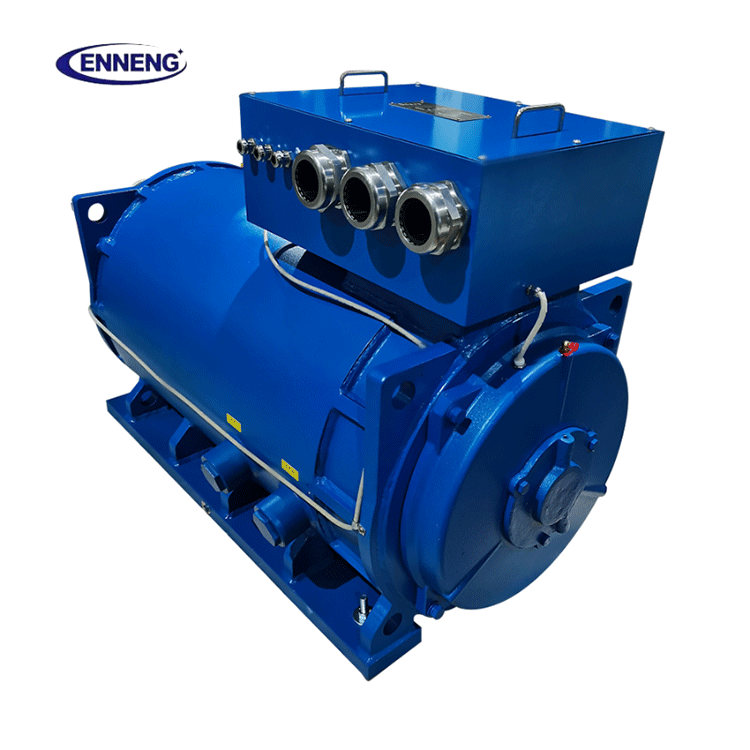

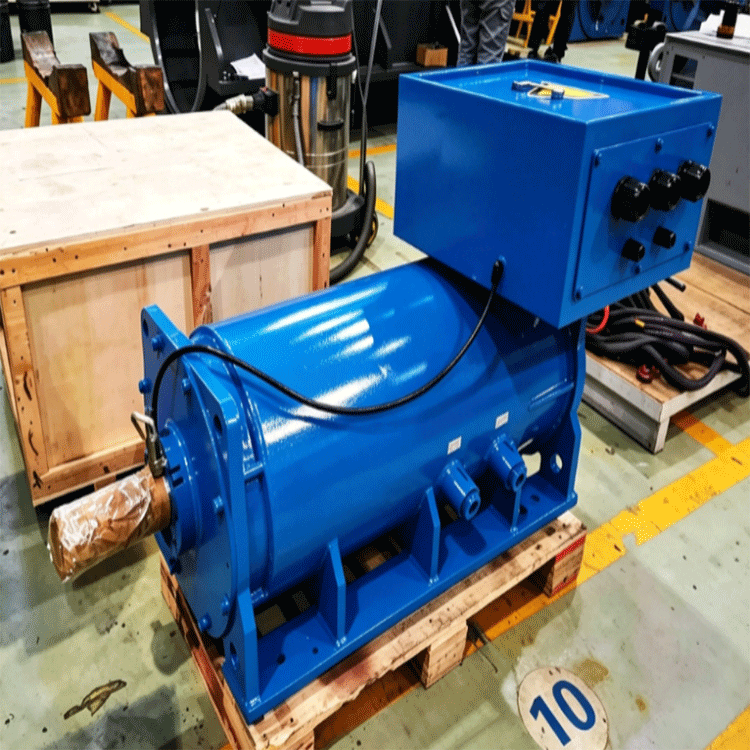

TYPCX Customized Permanent Magnet Motor for OEM and Industrial Applications

The TYPCX Series Customized Permanent Magnet Motor is designed for industrial equipment that operates under variable loads, demanding starts, or challenging environmental conditions. A pump may see changing pressure, a conveyor may start under a full load, and an agitator may operate in a dusty or humid process area. Instead of applying a one-size-fits-all design, Qingdao Enneng Motor CO., Ltd. evaluates the operating conditions of the driven machine and develops a motor configuration around the real duty.

A Customized Permanent Magnet Motor Built Around the Real Load

Motor selection should consider more than rated power. For the TYPCX Series, engineering inputs can include the torque-speed curve, starting demand, load cycle, ambient conditions, cooling route, installation interface, and control method. This approach helps the customized permanent magnet motor match the driven equipment more closely than a general-purpose motor selected with a broad safety margin.

The TYPCX Series uses permanent magnet synchronous motor technology. Its rotor design avoids rotor electrical losses associated with conventional induction motor operation. When the motor is correctly matched with the load and control system, this configuration can support an efficient drive solution for continuous-duty and variable-load industrial processes.

Key Features

One-to-One Load Matching

Each customized permanent magnet motor project starts with the application rather than a fixed catalog frame. Required starting torque, normal operating torque, speed range, cyclic load behavior, shaft dimensions, flange configuration, mounting feet, and cooling requirements can be reviewed before the design is finalized. This is useful where a motor must handle repeated starts, variable torque, high-inertia equipment, or a process that runs for long hours at a stable operating point.

Permanent Magnet Rotor Technology

The TYPCX Series is an industrial permanent magnet motor based on high-performance NdFeB magnet material. The source material identifies molecular encapsulation technology intended to help reduce the risks of magnet oxidation and demagnetization during operation. Magnet protection, operating temperature, cooling selection, load profile, and VFD settings all influence how a PMSM motor performs in service. Qingdao Enneng Motor CO., Ltd. therefore considers the motor, cooling arrangement, and control strategy as connected parts of the application.

High-Torque Capability for Demanding Starts

The TYPCX Series can provide overload capacity in the range of 200% to 300% rated torque, depending on the selected configuration and application conditions. This makes the high torque permanent magnet motor suitable for equipment that may require extra torque at start-up or during load changes, such as conveyors, ball mills, pumping units, and process machinery. Actual starting performance should be confirmed against the driven equipment, transmission arrangement, and VFD configuration.

Protection, Insulation, and Cooling Options

The industrial permanent magnet motor is available with IP55 or IP56 protection levels. These options can support use in environments affected by dust, water spray, or outdoor exposure, subject to final project requirements. Class F and Class H insulation options are available. Cooling methods include IC411, IC416, and ICW81 water cooling. Choosing between them depends on motor power, available space, ambient temperature, site utilities, and heat generated by the actual duty cycle.

Technical Parameters

The table provides the confirmed product range. Voltage, frequency, speed, hazardous-area requirements, mounting dimensions, and detailed control settings should be determined during technical communication for each PMSM motor project.

Technical Advantages for System Design

A permanent magnet motor is often considered when energy use, torque control, transmission layout, and maintenance planning are all important to a project. The TYPCX Series can be specified for direct-drive arrangements where a gearbox is not required by the equipment design. Removing or simplifying a transmission stage may reduce the number of mechanical components that need regular attention, but suitability depends on required speed, torque, available installation space, and the existing machine layout.

The IE4 or IE5 efficiency class options provide a useful basis for comparing motor alternatives. Operating hours, motor loading, VFD tuning, mechanical losses, and baseline equipment all affect actual energy use. The source material refers to a potential 15%–35% system energy-saving range in certain applications; this should be treated as a project evaluation reference rather than a universal result.

For procurement teams, the value of a customized permanent magnet motor is often found in the full operating picture: motor efficiency, equipment integration, uptime planning, spare-parts strategy, and the possibility of selecting one motor for one defined operating task.

Typical Applications

Oilfield Pumping Units

For sucker-rod pumping systems, a high torque permanent magnet motor can be configured around cyclic torque demand and the movement profile of the pumping unit. Load information is important because the operating cycle may change with well conditions, pumping depth, and mechanical balance.

Chemical and Petrochemical Equipment

Compressors, agitators, and other process equipment may require a PMSM motor with appropriate cooling, protection, and control coordination. Site safety requirements, atmosphere classification, and applicable certifications must be confirmed separately for each installation.

Mining and Metallurgy

Conveyors and ball mills often involve dust, heavy starts, and fluctuating loads. An industrial permanent magnet motor with suitable protection, insulation, cooling, and torque capability can be evaluated for these operating conditions.

Water Treatment and Desalination

Pumps used in water treatment or desalination systems may operate for extended periods under changing pressure conditions. A permanent magnet motor can be matched to pump duty, control requirements, and the environmental conditions surrounding the equipment.

Commercial Value and Selection Support

Qingdao Enneng Motor CO., Ltd. supports project-based motor selection from a minimum order quantity of one unit. This flexibility can help equipment builders, retrofit contractors, and industrial end users evaluate a customized permanent magnet motor for a defined machine rather than changing an entire motor fleet at once.

A clear selection process normally begins with rated power, speed, torque curve, load inertia, operating hours, ambient temperature, cooling availability, installation dimensions, and VFD information. Sharing these details early helps reduce mismatches between the motor and the driven equipment.

FAQ

Q:Can the TYPCX Series be customized for a specific shaft or flange?

A:Yes. The customized permanent magnet motor can be designed with project-specific shafts, flanges, mounting feet, and mechanical interfaces. Final drawings should be confirmed before production.

Q:Is the TYPCX Series compatible with a VFD?

A:The TYPCX Series PMSM motor is intended for use with modern vector-control VFD systems. Final compatibility depends on motor configuration, required speed range, feedback approach, and control parameters.

Q:Does IE5 mean the same energy saving for every installation?

A:No. IE5 identifies an efficiency class, while actual energy consumption depends on the complete system, load profile, operating hours, controls, and mechanical transmission.

Q:What warranty is available?

A:The confirmed warranty period is one year. Warranty scope and installation guidance should be confirmed with Qingdao Enneng Motor CO., Ltd. for the specific order.
