A custom-engineered Ultra Premium Efficiency Permanent Magnet Synchronous Motor (PMSM) specifically optimized for high-performance centrifugal pump systems. Designed to replace conventional induction motors, this series utilizes high-energy NdFeB rare-earth magnets to eliminate rotor excitation losses, achieving energy savings of 15% to 35% across variable flow conditions. With a power range from 5.5 kW to 6300 kW and a power factor up to 0.99, it provides the most efficient drive solution for industrial water treatment, chemical processing, and oil field fluid systems. Certified by ISO9001 and meeting rigorous IEC standards, this ODM-capable motor ensures maximum uptime and a significant reduction in total cost of ownership.
Product Overview and Working Principle
The Ultra Premium Efficiency PMSM series for Centrifugal Pumps is engineered for the high‑duty cycles and variable load profiles typical of industrial pumping applications. While traditional asynchronous motors experience a sharp drop in efficiency when operating below rated speed or load, the PMSM technology maintains a flat efficiency curve. This characteristic makes it the ideal choice for pump systems controlled by Variable Frequency Drives (VFD), where the majority of operating hours are spent at partial loads.
Qingdao Enneng Motor CO., Ltd. provides comprehensive ODM customization, allowing for precise matching of motor torque/speed curves to the specific hydraulic requirements of your centrifugal pump. By eliminating the "slip" inherent in induction motors, the synchronous technology delivers higher precision in flow and pressure control, reducing mechanical stress on the entire pumping system.
Key Features
Ultra Premium Energy Performance: Surpasses standard efficiency classes, specifically designed to reduce power consumption in constant‑pressure and variable‑flow pump systems.
Custom ODM Mechanical Interface: Available with custom shaft dimensions, mounting flanges, and terminal box orientations to ensure a seamless fit for any pump housing.
High Power Factor: Operates at 0.97–0.99 across the regulation range, minimizing heat generation and reducing the load on your facility's electrical infrastructure.
Superior Thermal Management: Utilizes Class F/H insulation and optimized cooling (IC411/IC71W) to ensure stable operation in high‑ambient industrial environments.

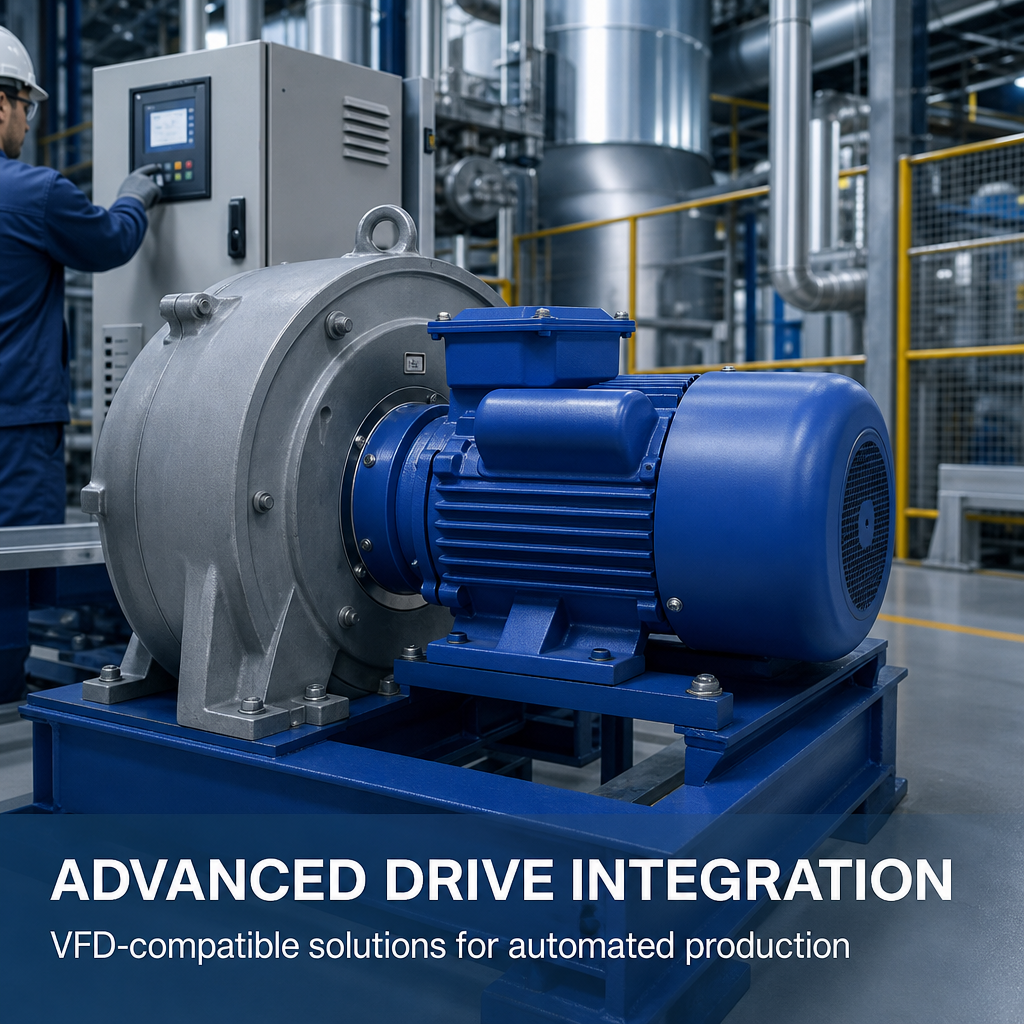

VFD Integrated Control: Fully compatible with high‑performance vector control drives for precise speed regulation and soft‑start protection.
Technical Specifications
Item |
Specification Details |
|---|---|
Product Type |
Custom ODM Permanent Magnet Synchronous Motor (PMSM) |
Power Range |
5.5 kW – 6300 kW (Fully Customizable) |
Rated Voltage |
380 V / 440 V / 660 V / 1140 V / 10000 V |
Efficiency |
Ultra Premium Efficiency (Exceeding IE4/IE5) |
Protection |
IP55 / IP56 / IP66 |
Insulation |
Class F / Class H |
Cooling |
IC411 (Air Cooled) / IC71W (Water Cooled) |
Rated Speed |
750 / 1000 / 1500 / 3000 RPM (Adjustable) |
Power Factor |
0.97 – 0.99 |
Certification |
ISO9001 certified, compliant with IEC standards |
Customization |
Full ODM capability (shaft, flange, terminal box, winding) |
Warranty |
1 Year & Lifetime Technical Support |
Technical Perspective

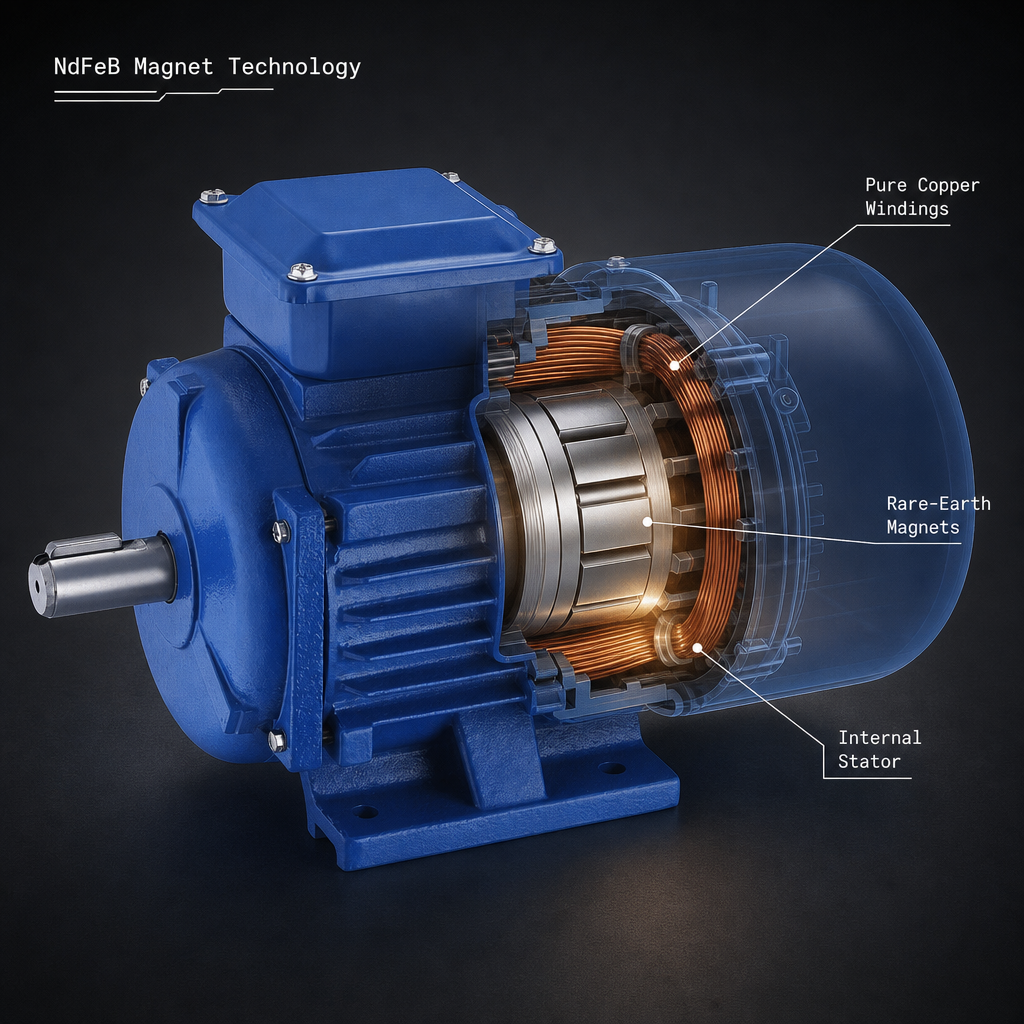

In centrifugal pump applications, electricity typically accounts for over 85% of the total lifecycle cost. Conventional motors lose efficiency due to heat generated by rotor windings. The Ultra Premium Efficiency PMSM utilizes NdFeB magnets with high coercivity, eliminating rotor copper loss entirely. This results in a motor that runs 15°C to 20°C cooler than standard induction motors, significantly extending bearing life and reducing maintenance intervals.
For ODM clients, specialized electromagnetic design is offered to optimize the "Starting Torque to Current" ratio. This ensures that even high‑inertia pump impellers can be brought to speed smoothly without drawing excessive peak currents from the grid. The resulting drive system delivers higher precision in flow and pressure control while reducing mechanical stress on pumps, seals, and piping.
Applications
Municipal Water Treatment: High‑efficiency driving for intake pumps, booster stations, and effluent circulation.
Chemical & Process Industry: Reliable performance for aggressive fluid handling where speed precision and leak‑proof reliability are paramount.
Oil & Gas Pumping: Heavy‑duty PMSM solutions for water injection and transfer pumps in remote oil field environments.
HVAC Circulation: Silent, high‑efficiency circulation for large‑scale commercial cooling and heating systems.
Commercial Value and Selection

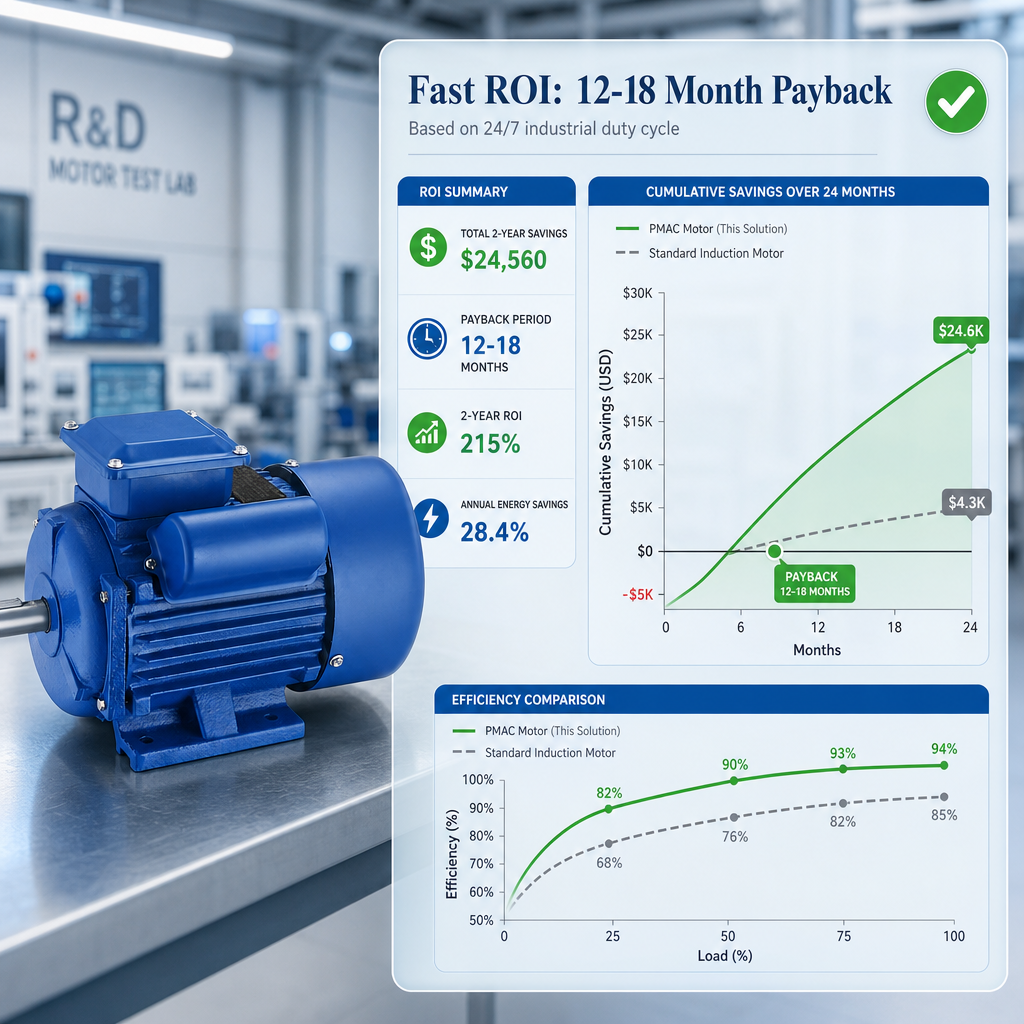

The commercial value of transitioning to Enneng Ultra Premium Efficiency technology is measured by the Payback Period. For pumps running more than 6,000 hours per year, the energy savings alone typically cover the procurement price difference within 12 to 18 months. Certified by ISO9001 and meeting rigorous IEC standards, this ODM‑capable motor ensures maximum uptime and a significant reduction in total cost of ownership.
To begin your custom ODM project, please provide:
Pump application type and hydraulic power requirements.
Required rated speed and flow regulation range.
Ambient environment conditions (Temperature, Humidity, Altitude).
Specific mounting dimensions or flange standards.
FAQ
Q: Can this motor be used with my existing VFD?
A: Most modern vector‑control VFDs support PMSM algorithms. We recommend a parameter check or using our integrated "Drive + Motor" solution for optimal efficiency.
Q: How does this motor handle harsh chemical environments?
A: We offer IP56/IP66 protection levels and specialized anti‑corrosion coatings for the terminal box and motor frame to withstand aggressive atmospheres.
Q: Why choose ODM Customization instead of a standard motor?
A: Custom ODM ensures the motor's efficiency peak matches your pump's "Best Efficiency Point" (BEP), maximizing energy yield that off‑the‑shelf motors cannot achieve.
