Low Speed High Torque Direct Drive PMSM for Industrial Fans Featuring IE5 Efficiency

Product Overview and Working Principle

This custom low‑speed high‑torque direct‑drive motor is designed to redefine the drive architecture of industrial fans. Conventional fan systems rely on high‑speed induction motors coupled with complex, maintenance‑intensive gearboxes to achieve the necessary rotational speeds. This legacy configuration introduces mechanical friction, vibration, and the constant risk of oil leaks. Our Direct Drive PMSM technology outputs massive torque directly at the shaft, matching the fan blade requirements perfectly without any speed reduction stages.

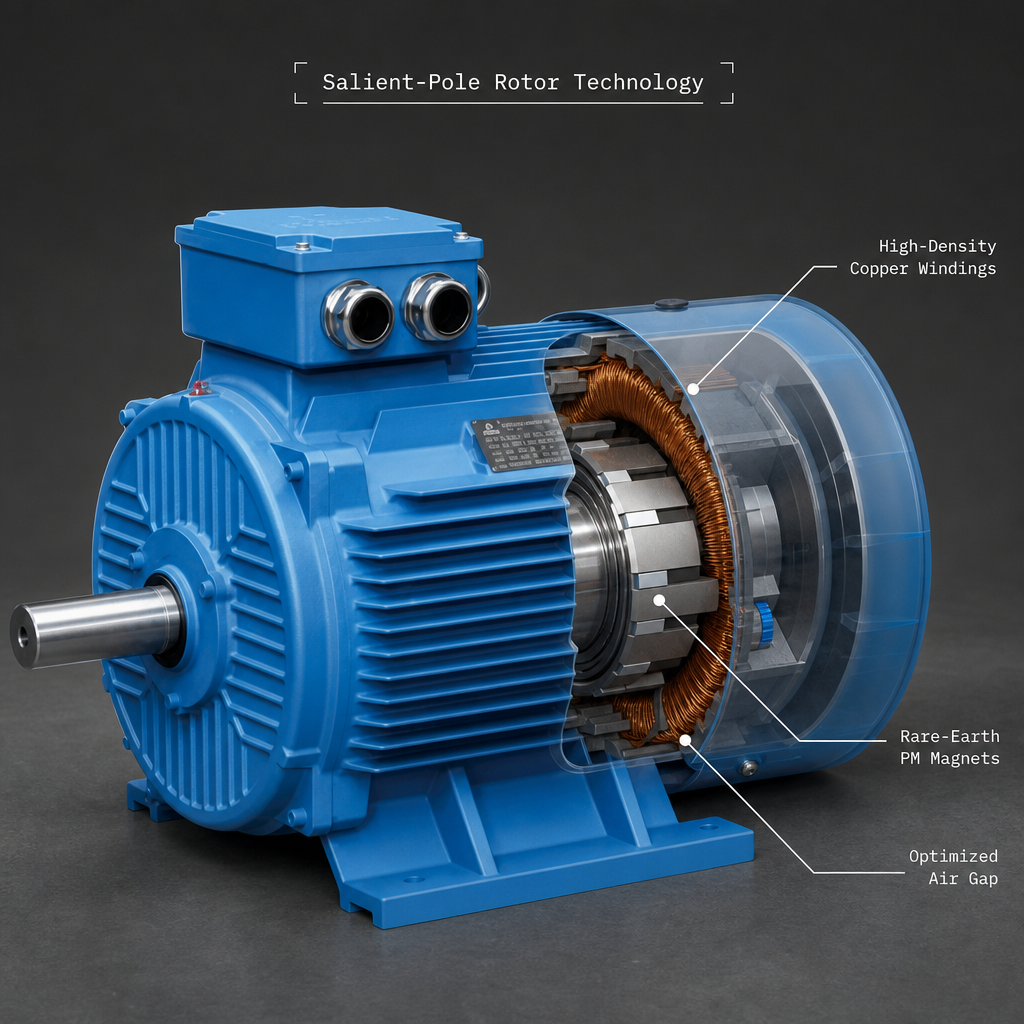

For energy managers and facility engineers, this gearless technology offers a cooler, quieter, and maintenance‑free alternative. The integration of high‑performance rare‑earth magnets ensures a flat efficiency curve across the entire regulation range, maximizing energy yield even during partial load or low‑speed operations. By eliminating the "slip" inherent in asynchronous motors, Enneng synchronous technology delivers precision air volume management while slashing operational costs. The multi‑pole rotor design generates rated torque at speeds as low as 20 rpm, directly matching fan blade requirements without mechanical speed reduction stages or the associated 5–10% transmission losses.

Key Features

• Gearless Direct‑Drive Architecture: Removes the gearbox, drive shaft, and couplings, eliminating 5–10% of mechanical loss and cutting maintenance costs by over 50%. This also eliminates oil leak risks associated with gearbox seals, making it ideal for sensitive cooling tower and food‑grade environments.

• IE5 Peak Energy Performance: Surpasses international efficiency standards, maintaining ultra‑high efficiency even at variable speeds and low loads. The efficiency curve remains flat from 25% to 120% of rated load, ensuring consistent energy savings across fluctuating fan demand cycles.

• Exceptional Torque Density: Capable of delivering up to 100,000 N.m of torque directly, matching large‑diameter fan hub requirements. High starting torque ensures smooth acceleration of high‑inertia fan impellers without excessive inrush current or grid disturbance.

• Hazardous Environment Reliability: Standard IP55/IP56 protection with advanced magnet coatings to resist thermal demagnetization in high‑humidity cooling tower atmospheres. Optional anti‑corrosion treatments and epoxy finishes are available for chemical plants and coastal installations.

• Precision Speed Modulation: Fully compatible with vector‑control VFDs for smooth acceleration and precise air volume control based on demand. Closed‑loop speed regulation maintains accuracy within ±0.1% of setpoint, which is critical for balancing multi‑fan cooling cells and tunnel ventilation systems.

• Compact & Lightweight Design: Approximately 35% more compact than equivalent geared induction systems, simplifying industrial installation. The reduced footprint also lowers structural steel support requirements, foundation loading, and overall shipping logistics costs.

Technical Specifications

Technical Perspective

The core technical advantage of this direct‑drive solution lies in the elimination of the "Slip" and "Friction" found in induction‑gearbox systems. By driving the fan hub directly, the motor recovers energy usually lost to heat in the gearbox. Furthermore, structural vibration is significantly reduced. Gearboxes are a primary source of high‑frequency noise and mechanical wear. The gearless architecture provides a smoother, quieter operation that extends the fatigue life of both the fan blades and the supporting infrastructure.

Thermal management is another critical advantage. With Class F/H insulation and optional IC411, IC416, or IC71W cooling configurations, the motor maintains stable winding temperatures even in high‑ambient environments up to 55°C. This extends bearing lubrication intervals and reduces the risk of unplanned downtime in 24/7 continuous‑duty industrial operations. The permanent magnets are encapsulated with advanced protective coatings to resist thermal demagnetization up to 150°C, ensuring long‑term performance stability in demanding cooling tower and process environments.

Applications

Cooling Tower Fans: Direct driving for zero oil‑leak risk and peak water hygiene. The low‑speed direct coupling also eliminates drive shaft alignment issues and simplifies routine inspection access.

Industrial Ventilation: Energy‑saving drives for large roof fans and tunnel ventilation systems. Variable speed operation matches airflow to real‑time occupancy or process demand, avoiding wasted energy from constant‑speed throttling.

Process Agitators: Reliable high‑torque mixing for viscous materials without mechanical strain. Constant torque across the entire speed range ensures uniform mixing quality and consistent batch‑to‑batch process results.

Mining Ball Mills: Direct shaft coupling for heavy grinding applications with high‑start torque. The gearless design withstands the shock loads typical of grinding operations and eliminates the need for gearbox oil changes in remote mine sites.

Commercial Value and Selection

For typical industrial fans running 6,000+ hours per year, the 15–35% energy saving typically results in a full ROI within 12 to 24 months, purely from electricity cost reduction and the complete elimination of gearbox oil and seal maintenance costs. This makes it an ideal solution for facilities aiming for carbon neutrality and OPEX optimization. For selection, we recommend providing the fan blade diameter, required torque at rated speed, mounting orientation, and ambient conditions for a tailored gearless drive solution. Enneng engineering teams also provide on‑site commissioning support and lifetime technical assistance to ensure optimal long‑term performance and maximum return on investment.

FAQ

Q: Does it really eliminate the need for a gearbox?

A: Yes. This is a high‑torque motor designed to match the fan's rotational speed directly. No speed reducer is required.

Q: Is it suitable for vertical outdoor environments?

A: Absolutely. We provide specialized vertical mounting with IP56 waterproof seals for cooling towers.
