Stable Continuous Running PM Motor for High Speed Textile Production Lines

Product Overview and Working Principle

The Stable Continuous Running PM Motor for Textile Production is a precision‑engineered drive system developed to address the specific challenges of textile automation. In spinning, weaving, and dyeing processes, even minor speed fluctuations can lead to catastrophic material failure or quality defects. Our PMSM technology ensures that the motor's shaft speed is perfectly synchronized with the supply frequency, providing a level of precision that traditional induction motors simply cannot match.

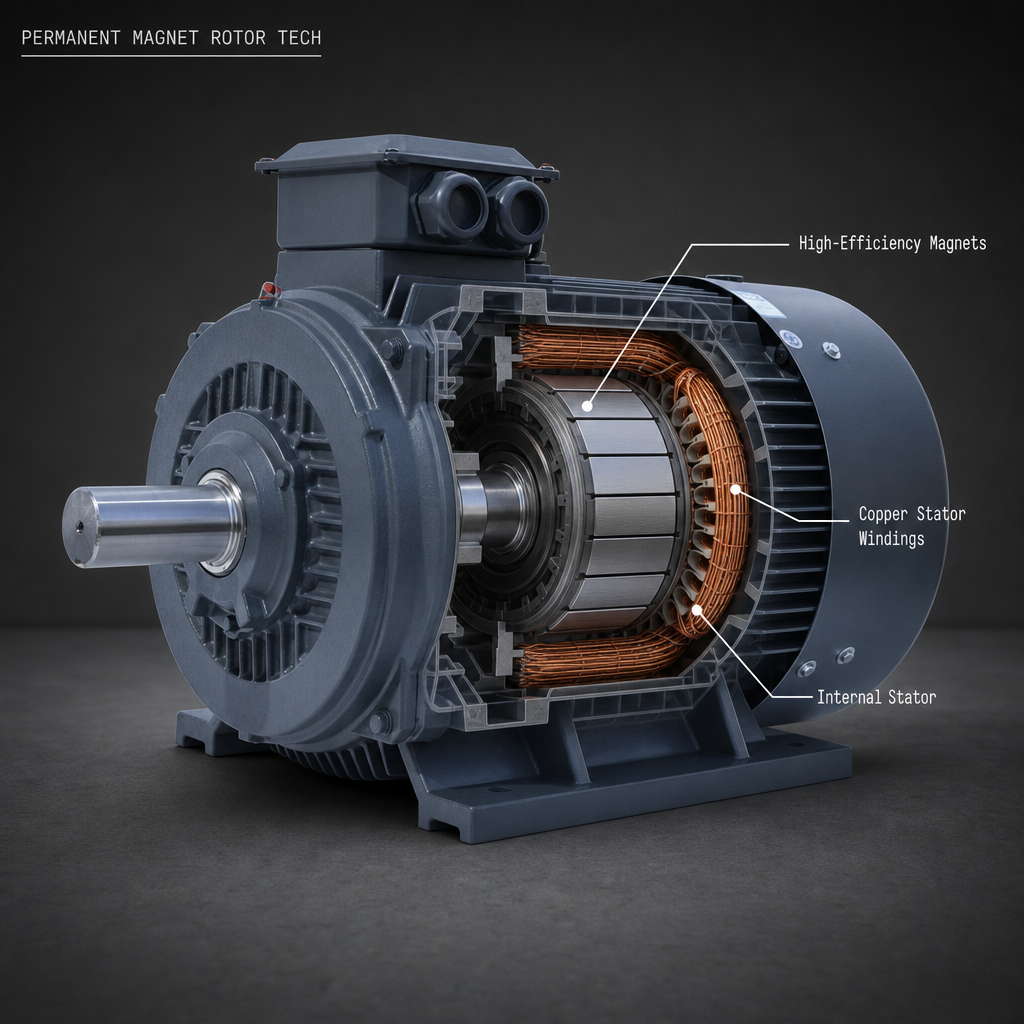

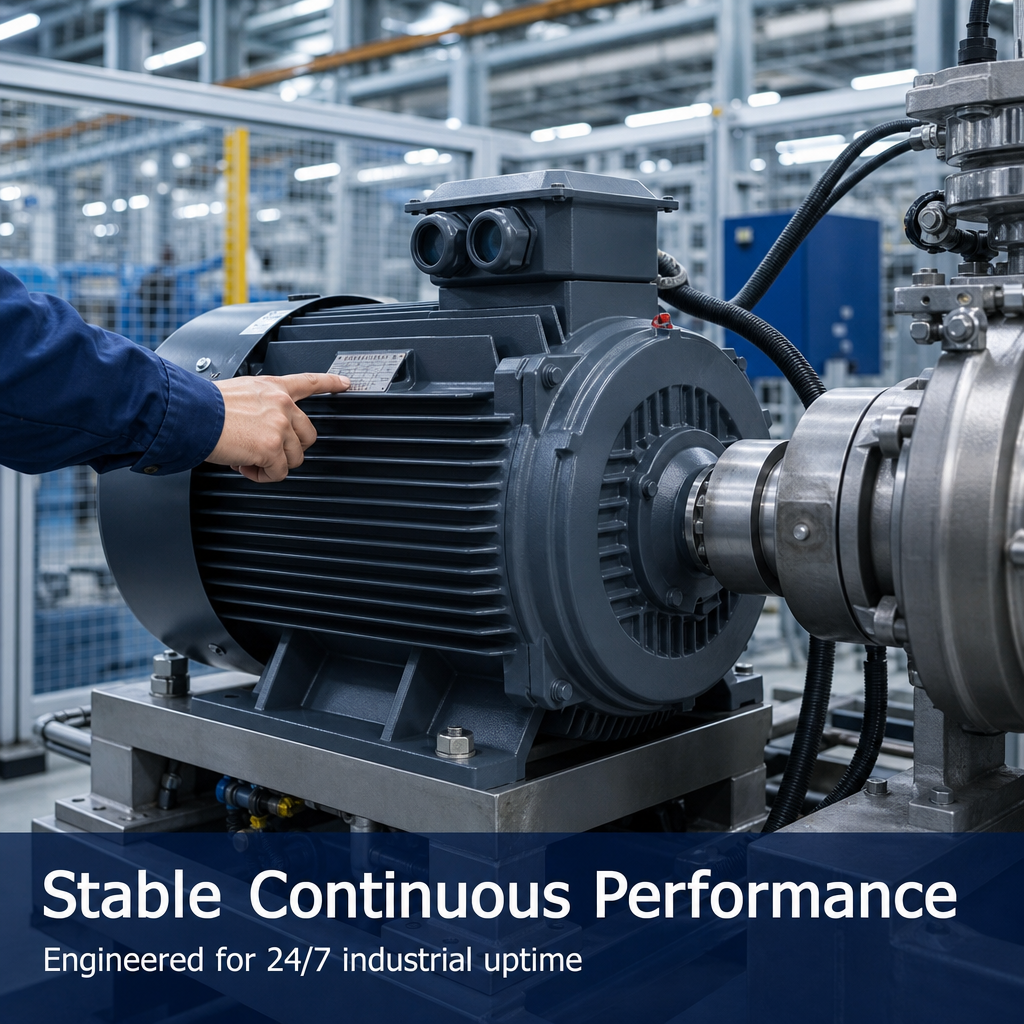

Constructed with high‑coercivity NdFeB permanent magnets and a compact, self‑ventilated enclosure, the Stable Continuous Running PM Motor is optimized for the continuous duty (S1) required by high‑speed production lines. By removing the need for rotor excitation currents, the motor runs cooler and more efficiently, significantly extending the service life of internal bearings and insulation. The reduced thermal stress also lowers the risk of unexpected downtime, a critical factor in textile mills where production line stoppages can result in substantial material waste and lost revenue.

Key Features

• Synchronous Speed Stability: Zero‑slip performance ensures 100% speed accuracy, providing uniform tension control. This eliminates the yarn breakage and fabric defects that occur when induction motor slip causes speed variations under changing load conditions.

• IE5 Ultra‑Premium Efficiency: 15%–35% lower power consumption compared to IE2/IE3 induction motors. The efficiency remains stable across the full load range, ensuring consistent energy savings even during partial‑load operation common in multi‑stage production processes.

• High Power Factor (0.95–0.99): Reduces reactive power demand and heat generation. This lowers the required capacity of transformers and distribution equipment, potentially reducing both capital expenditure and ongoing electricity demand charges.

• Compact & Lightweight Design: Approximately 30% smaller than equivalent induction motors. The reduced footprint simplifies integration into space‑constrained textile machinery and lowers shipping and installation costs.

• Maintenance‑Free Reliability: Simplified rotor structure ensures stable continuous running. With no brushes or slip rings to replace, the motor minimizes scheduled maintenance intervals and reduces spare parts inventory requirements.

• Wide Speed Regulation: Compatible with VFD control for precise speed regulation. This allows operators to fine‑tune production speed for different fabric types or yarn counts without mechanical gear changes.

Technical Specifications

Technical Perspective

Textile production lines operate under a "High‑Hour, Constant‑Load" profile, where energy costs represent over 60% of total factory OPEX. Traditional induction motors produce heat through rotor copper losses. Our Stable Continuous Running PM Motor utilizes a rare‑earth magnet field, eliminating these rotor losses and allowing the motor to operate at significantly lower internal temperatures. This thermal advantage is critical in textile mills where lint can compromise standard motor cooling.

The compact self‑ventilated enclosure is specifically designed to maintain airflow efficiency in environments where airborne lint and fibers are present. Unlike open‑frame motors that require frequent cleaning to prevent clogging, the IP55‑rated construction keeps the internal cooling path clear, ensuring consistent thermal performance over extended production runs. Combined with Class F/H insulation, the motor withstands the elevated ambient temperatures typical of dyeing and finishing departments without derating.

Applications

High‑Speed Spinning Frames: Uniform spindle speed for consistent yarn count. Zero‑slip operation ensures that every spindle rotates at exactly the commanded speed, eliminating count variation across the production batch.

Knitting Machines: Smooth, vibration‑free torque for delicate fabric. The absence of gearbox vibration prevents pattern distortion and reduces needle breakage rates in high‑cycle knitting operations.

Weaving Looms: High‑response drive for precision mechanisms. Fast torque response supports the rapid acceleration and deceleration cycles required by modern high‑speed shuttleless looms.

Dyeing & Finishing: Reliable operation in chemically active environments. Corrosion‑resistant coatings and sealed enclosures protect the motor from chemical vapors and high humidity in dye house conditions.

Commercial Value and Selection

The energy savings typically cover the investment premium in less than 12 months. To select the optimal configuration, please provide: Machine type, required rated power/speed range, ambient environment details, and mounting flange dimensions. Enneng engineering teams also provide on‑site commissioning support and lifetime technical assistance to ensure optimal motor performance throughout the production lifecycle.

FAQ

Q: Does it require a special drive?

A: It requires a VFD with permanent magnet control software (Vector Control).

Q: How does it resist lint buildup?

A: The IP55 enclosure is sealed to prevent textile fibers from entering the motor.

Q: Can this motor be retrofitted into existing textile machinery?

A: Yes. The compact design and standard IEC mounting dimensions allow direct replacement of existing induction motors in most spinning, weaving, and knitting machine configurations.
